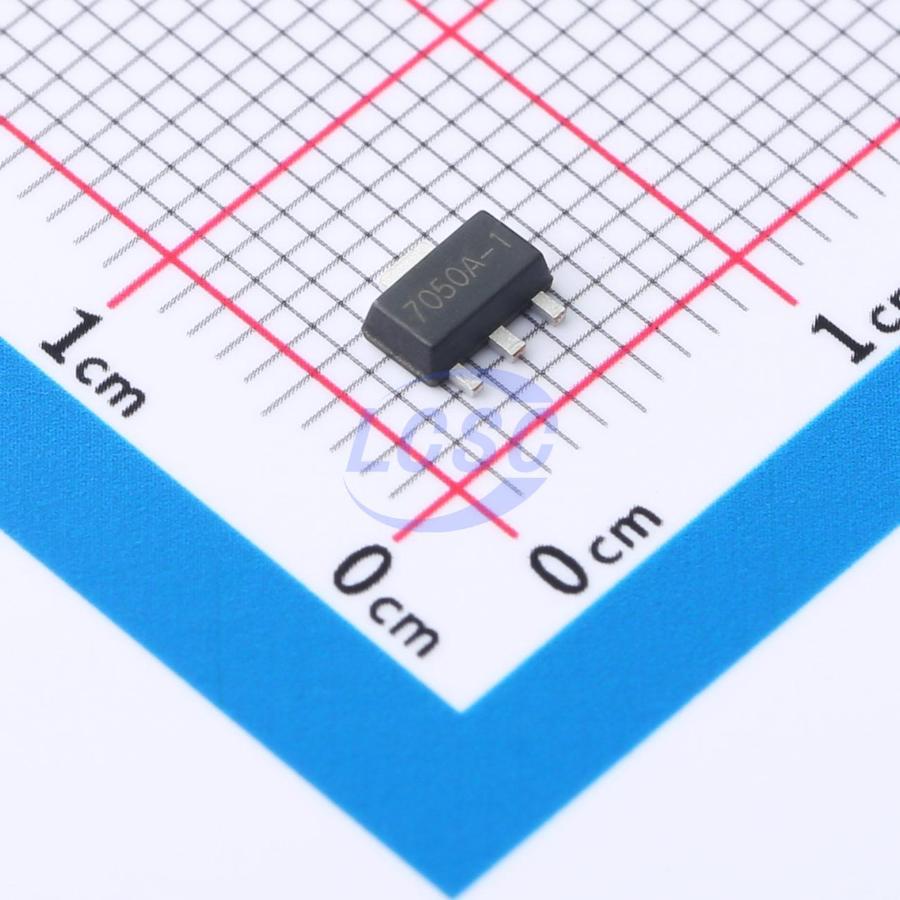

GR7050A
Supervisor Open Drain 1 Channel SOT-89-3
Low Voltage Detector
- Manufacturer
- GR
- Manufacturer part #
- GR7050A
- Store part #
- C19631716
- Package / case
- SOT-89-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C19631716
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.64 | ₹106.40 |
| 100+ | ₹8.55 | ₹855.00 |
| 300+ | ₹7.51 | ₹2,253.00 |
| 1,000+ | ₹6.73 | ₹6,730.00 |
| 5,000+ | ₹6.10 | ₹30,500.00 |
| 10,000+ | ₹5.78 | ₹57,800.00 |
10 × ₹10.64
₹106.40
excl. GST
₹125.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GR7050A
₹106.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.181 g
Overview
The GR70xx series is a three-pin low-voltage detector implemented in CMOS technology. This series can detect fixed voltages ranging from 2.2V to 7V. The detector consists of four functional blocks: a high-accuracy, low-power reference voltage source, a comparator, a hysteresis circuit, and an output driver. CMOS technology ensures low power consumption. Although the detector is primarily designed for fixed-voltage detection, user-defined threshold voltages can also be detected via external components (NMOS open-drain type only).
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power-fail detector
- Battery backup storage
- Microprocessor reset
Key features
- Low power consumption, typical: 2.0μA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: typical ±50ppm/℃
- Compact package: SOT23-3, SOT89-3, TO92
