UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
GRDatasheet (PDF)

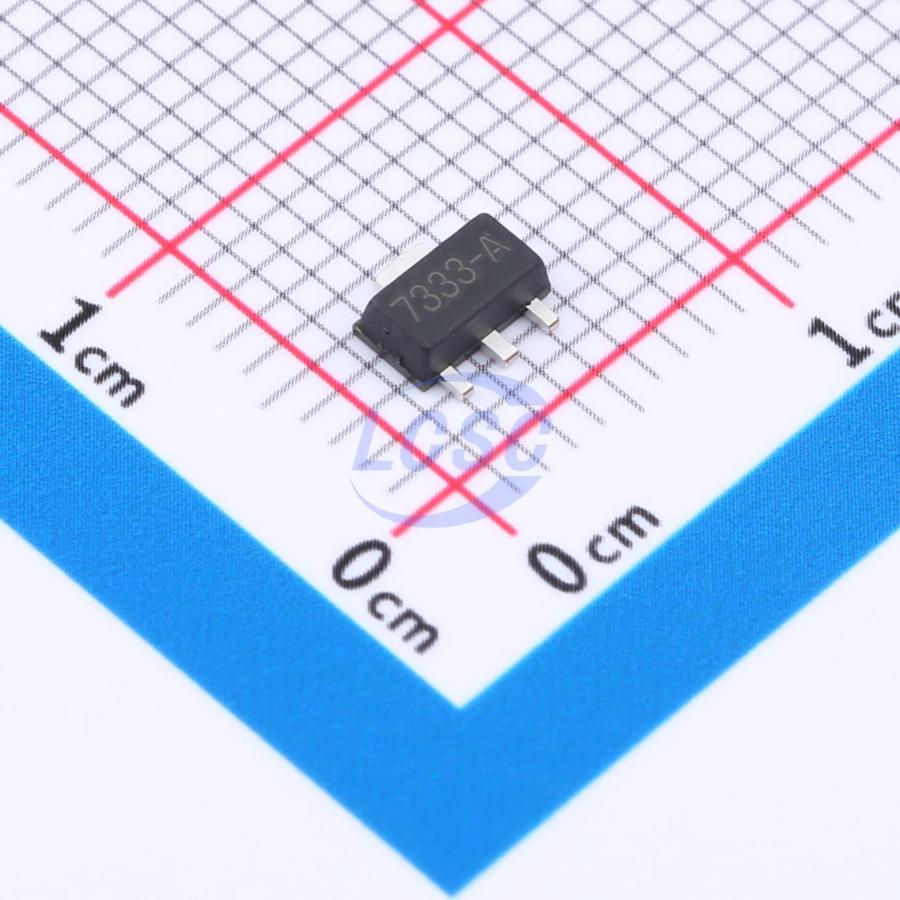

GR7333-A
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89-3
SOT-89-3RoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- GR7333-A
- Store part #
- C19631794
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,040 in stock
#C19631794
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.62 | ₹56.20 |
| 100+ | ₹4.45 | ₹445.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 1,000+ | ₹3.41 | ₹3,410.00 |
| 5,000+ | ₹3.07 | ₹15,350.00 |
| 10,000+ | ₹2.88 | ₹28,800.00 |
10 × ₹5.62
₹56.20
excl. GST
₹66.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GR7333-A
₹56.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 15V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.17 g
Overview
The GR73xx series is a positive-voltage linear regulator developed using CMOS technology, featuring low dropout voltage, high-accuracy output voltage, and ultra-low quiescent current. Due to the built-in low on-resistance transistor, the dropout voltage is minimized, while also offering high input voltage tolerance, with a maximum operating voltage of up to 15V, making it suitable for applications requiring higher voltage ratings.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliance and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±3%
- Ultra-low quiescent current: 2uA typical
- Low output voltage temperature coefficient: 50 ppm/°C typical
- High input voltage rating: 15V
- Package types: TO-92, SOT89-3, SOT23-3
