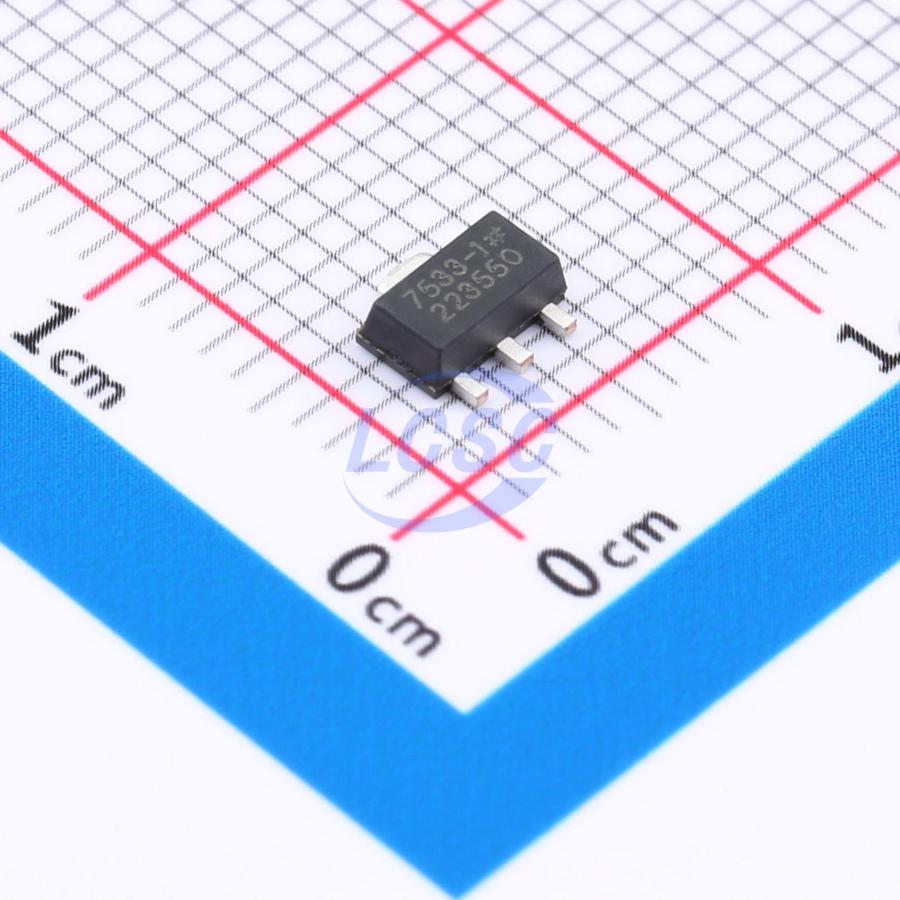

GR7533H
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-89-3
SOT-89-3RoHSActive
LDO High-Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- GR7533H
- Store part #
- C19631780
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,840 in stock
#C19631780
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.49 | ₹54.90 |
| 100+ | ₹4.34 | ₹434.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 1,000+ | ₹3.33 | ₹3,330.00 |
| 5,000+ | ₹2.99 | ₹14,950.00 |
| 10,000+ | ₹2.82 | ₹28,200.00 |
10 × ₹5.49
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GR7533H
₹54.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 30mA
- Operating Voltage
- 25V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.101 g
Overview
GR75xxH series are low-power, high-voltage regulators fabricated using CMOS process, supporting a maximum input voltage of 25V and an output voltage range of 1.5V~12.0V. They feature high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: typical 2μA
- Low dropout voltage: typical 0.1V
- Low temperature coefficient: typical 50 ppm/°C
- High input voltage: up to 25V
- High-accuracy output voltage: ±3% tolerance
- Package: TO-92, SOT89-3
