GRDatasheet (PDF)

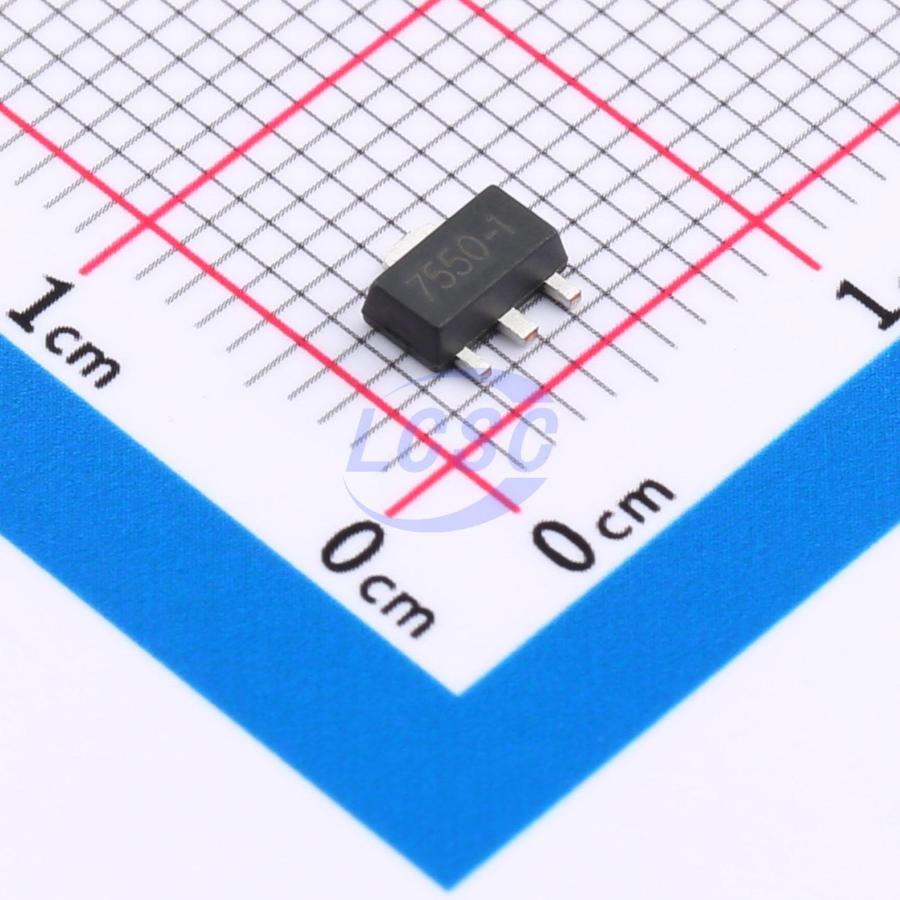

GR7550
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
SOT-89-3RoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- GR7550
- Store part #
- C19631773
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C19631773
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.72 | ₹74.40 |
| 200+ | ₹2.90 | ₹580.00 |
| 1,000+ | ₹2.45 | ₹2,450.00 |
| 2,000+ | ₹2.17 | ₹4,340.00 |
| 10,000+ | ₹1.93 | ₹19,300.00 |
| 20,000+ | ₹1.80 | ₹36,000.00 |
20 × ₹3.72
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GR7550
₹74.40 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.167 g
Overview
GR75xx series are low-power, high-voltage regulators fabricated using CMOS process, with a maximum input voltage of 18V and an output voltage range of 2.5V. They feature high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: 0.1V typical
- Low temperature drift: 50 ppm/°C typical
- High input voltage: up to 18V
- High output voltage accuracy: ±3% tolerance
- Package: TO-92, SOT89-3, SOT23-3
