GainsilDatasheet (PDF)

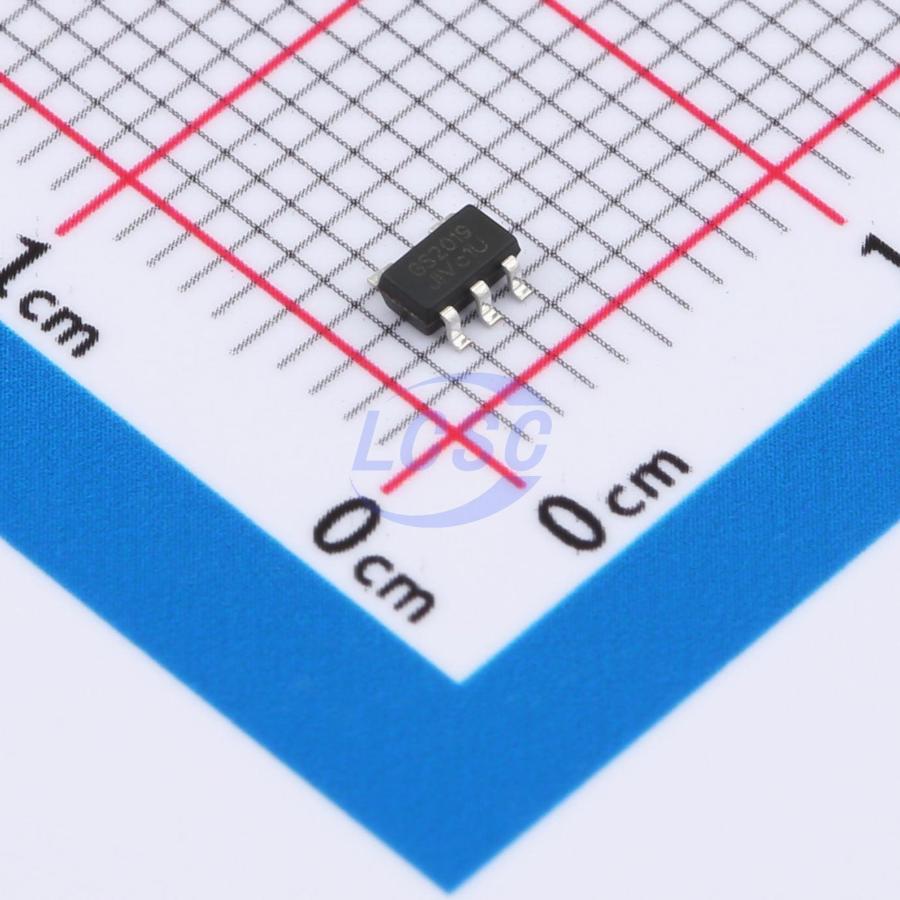

GS2019-33TR5
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
7V, 500mA Balanced Performance LDO
- Manufacturer
- Gainsil
- Manufacturer part #
- GS2019-33TR5
- Store part #
- C41419378
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,040 in stock
#C41419378
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.00 | ₹90.00 |
| 100+ | ₹7.13 | ₹713.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 3,000+ | ₹5.50 | ₹16,500.00 |
| 6,000+ | ₹4.95 | ₹29,700.00 |
| 9,000+ | ₹4.67 | ₹42,030.00 |
10 × ₹9.00
₹90.00
excl. GST
₹106.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS2019-33TR5
₹90.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The GS2019 Series are a group of voltage regulator swith high accuracy, high speed, low drop-out, high ripple rejection and fast discharge function. The current limiter’s fold-back circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltage is selectable from 1.2V to 5.0V which fixed by laser trimming technologies, Step =100mV. The GS2019 Series is available in SOT23, SOT23-3L, SOT23-5L and DFN1x1-4L packages.
Applications
- Battery-Powered Devices
- Reference Voltage Sources
- Other Low Voltage Power Suppliers
Key features
- Output Accuracy: ± 1%
- Low Quiescent Current: 40uA
- Low Dropout Voltage: 120mV@100mA/3.3V
- High PSRR: 80dB(1KHz,10mA)
- Output Current: 500mA
- Excellent Line and Load Regulation
- Operating Voltage Range: from 1.8V to 7.0V
- Output Voltage Range: from 1.2V to 5.0V
- Over-Temperature Protection
- Current Limiting Protection
- Output Short-Circuit Protection
- Available in SOT23, SOT23-3L, SOT23-5L and DFN1x1-4L Packages
