GainsilDatasheet (PDF)

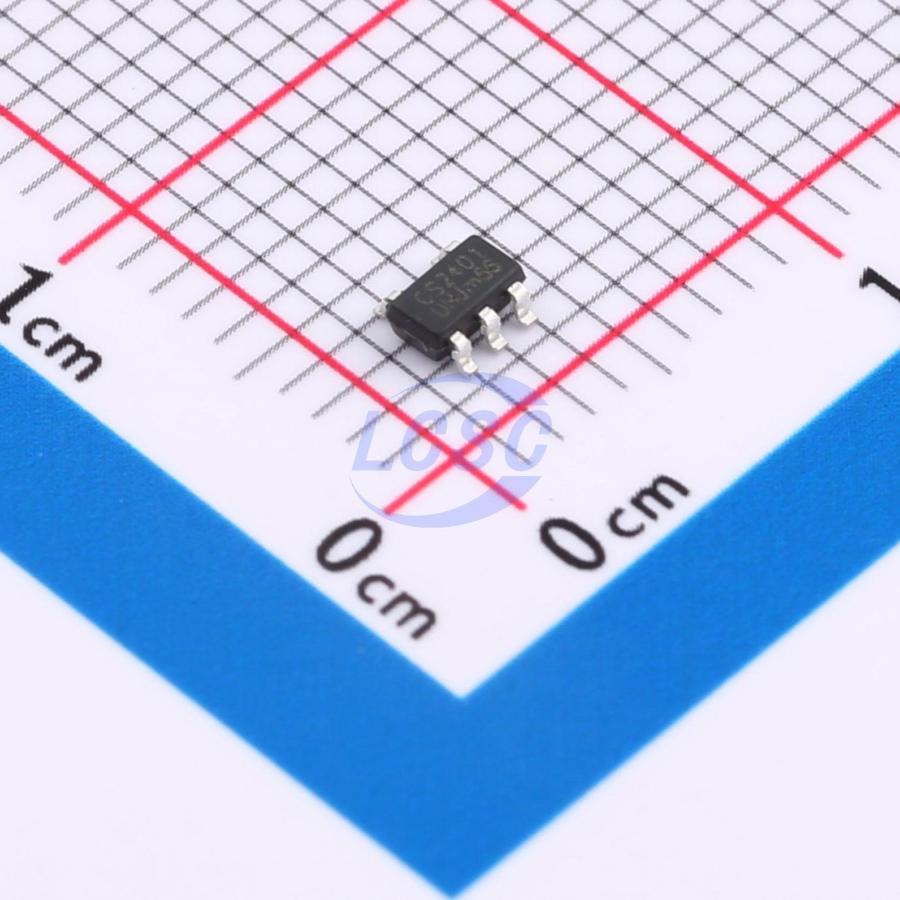

GS2401C-50TR5
5V Positive Fixed SOT23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT23-5RoHSActive
40V μA-power LDO Regulator
- Manufacturer
- Gainsil
- Manufacturer part #
- GS2401C-50TR5
- Store part #
- C6283797
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,405 in stock
#C6283797
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.60 | ₹108.00 |
| 50+ | ₹17.04 | ₹852.00 |
| 150+ | ₹15.08 | ₹2,262.00 |
| 500+ | ₹12.63 | ₹6,315.00 |
| 3,000+ | ₹11.55 | ₹34,650.00 |
| 6,000+ | ₹10.89 | ₹65,340.00 |
5 × ₹21.60
₹108.00
excl. GST
₹127.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS2401C-50TR5
₹108.00 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+80℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 40V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The GS2401C is a 40V μA -power high accuracy LDO regulator. The 1μA power consumption makes it ideal for most HV power-saving systems. The maximum operating voltage can be as high as 40V. The output accuracy is as excellent as ±1%. The other features include low dropout voltage, current limiting protection and thermal shutdown protection.
Applications
- Battery Supplied Systems
- Telecom Systems
- Audio & Video Devices
Key features
- Maximum Operating Voltage: 40V
- Output Voltage: 1.8V, 2.5V, 3.0V, 3.3V, 3.6V, 4.0V, 4.2V and 5.0V
- Output Accuracy: ±1%
- Low Power Consumption: 1.5μA
- <0.1μA Standby Current When Shutdown
- Low Temperature Coefficient
- Current Limiting, Thermal Shutdown
- Available in TO - 92, SOT89 - 3, SOT23/SOT23 - 3L and SOT23 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GS2501C-50TR5#C52211852Gainsil · SOT-23-5 | Gainsil | SOT-23-5 | 2,985 | ₹15.65 · 2,985 in stock | View |
