GainsilDatasheet (PDF)

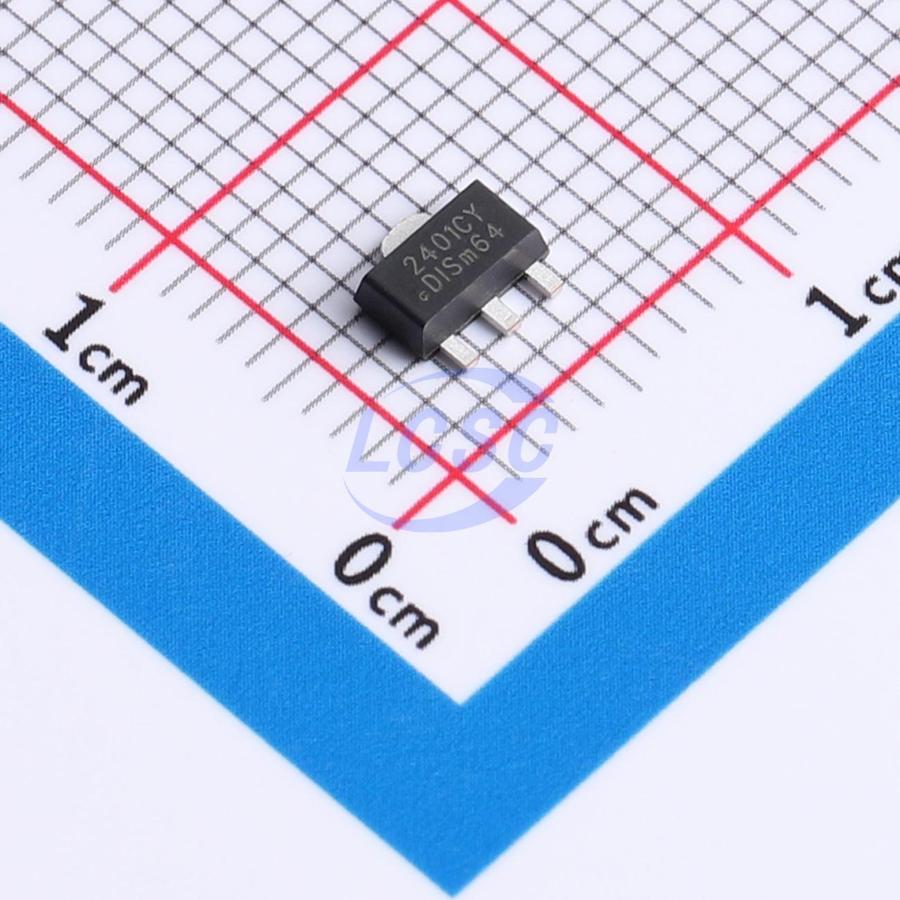

GS2401CY-50STR3
5V Positive Fixed SOT-89-3B Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3BRoHSActive
- Manufacturer
- Gainsil
- Manufacturer part #
- GS2401CY-50STR3
- Store part #
- C49326090
- Package / case
- SOT-89-3B
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,725 in stock
#C49326090
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.16 | ₹160.80 |
| 50+ | ₹25.40 | ₹1,270.00 |
| 150+ | ₹22.52 | ₹3,378.00 |
| 500+ | ₹18.91 | ₹9,455.00 |
| 3,000+ | ₹17.29 | ₹51,870.00 |
| 6,000+ | ₹16.33 | ₹97,980.00 |
5 × ₹32.16
₹160.80
excl. GST
₹189.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS2401CY-50STR3
₹160.80 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+125℃
- Supply Current (Iq)
- 1.3uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
GS2401C is a 40V microamp-consumption high-accuracy low-dropout regulator. Its 1μA quiescent current makes it ideal for most high-voltage energy-saving systems. Maximum operating voltage up to 40V. Output accuracy up to ±1%. Additional features include low dropout, current limiting protection, and thermal shutdown protection.
Applications
- Battery-powered systems
- Telecommunication systems
- Audio/video equipment
Key features
- Maximum operating voltage: 40V
- Output voltage: 1.8V, 2.5V, 3.0V, 3.3V, 3.6V, 4.0V, 4.2V, and 5.0V
- Output accuracy: ±1%
- Low quiescent current: 1.5µA
- Standby current in shutdown <0.1µA
- Low temperature coefficient
- Current limiting, thermal shutdown
- Available in TO-92, SOT89-3, SOT23-3, SOT223-3, and SOT23-5 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GS2401C-50STR3#C49326112Gainsil · SOT-89-3A | Gainsil | SOT-89-3A | 1,935 | ₹32.16 · 1,935 in stock | View |
