GainsilDatasheet (PDF)

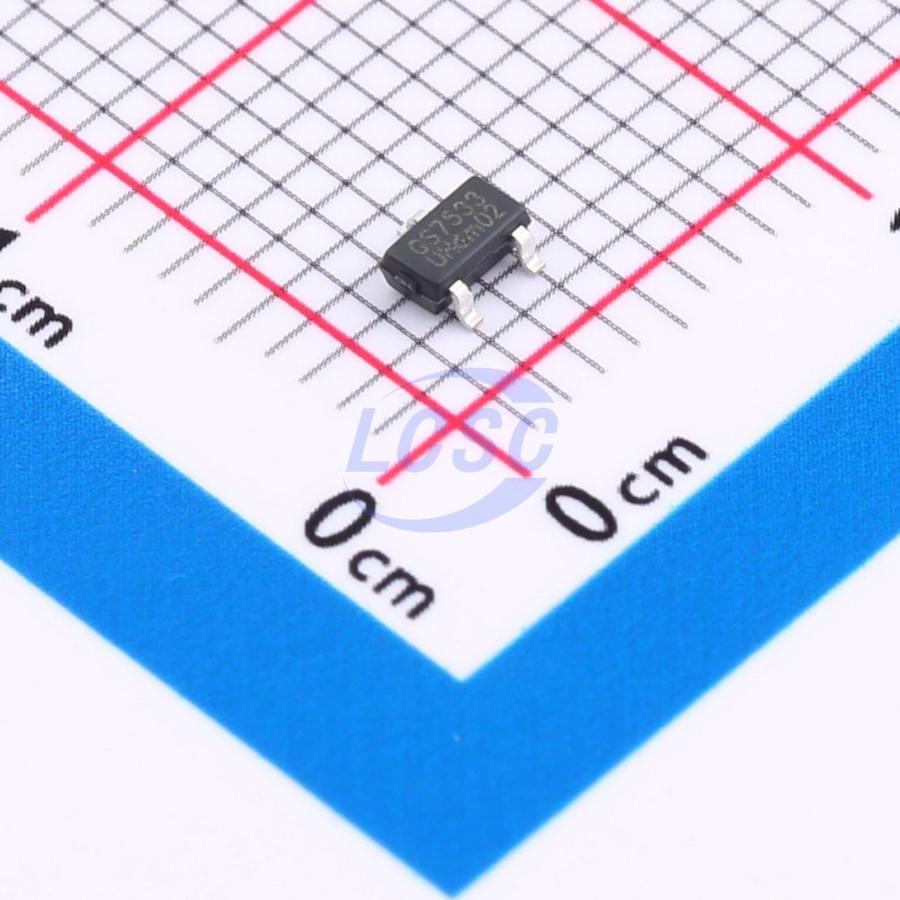

GS7533-50TR3
1.2V~5V Positive Adjustable SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Low Power Consumption High Voltage CMOS LDO Regulator
- Manufacturer
- Gainsil
- Manufacturer part #
- GS7533-50TR3
- Store part #
- C42385255
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C42385255
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.96 | ₹99.60 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
| 9,000+ | ₹5.11 | ₹45,990.00 |
10 × ₹9.96
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS7533-50TR3
₹99.60 for 10 + GST
Specifications
- Output Voltage
- 1.2V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Output Type
- Adjustable
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The GS7533 series is a set of low power high voltage regulators implemented in CMOS technology. Which can provide 150mA output current. The device allows input voltage as high as 36V. It is very suitable for multi-cell battery systems, bus voltage power supply systems and other high DC voltage systems. Wide input voltage can make it well withstand the impact of surge voltage and ensure the stability of output voltage. The GS7533 series only 2μA (typical) current is consumed by itself, which is especially important in multi-battery power supply systems and can reduce the standby power consumption of the whole system. The GS7533 low-dropout regulators (LDO) consumes only 2μA of quiescent current at light load and delivers excellent line and load transient performance. These characteristics, combined with low noise and good PSRR with low dropout voltage, make this device ideal for portable consumer applications.
Applications
- Audio/Video Equipment
- Communication Equipment
- Battery-Powered Equipment
- Automotive Head Unit Laptop, Palmtops, Notebook Computers
Key features
- Low Quiescent Current IQ: 2μA Typical at Light Loads
- 150mA Nominal Output Current
- Low Dropout Voltage
- Low Temperature Coefficient
- High Input Voltage (up to 36V)
- Output Voltage Accuracy: ±2%
- Output voltage range is adjustable from 1.2V to 5V, and the step size is 0.1V.
- Over temperature Protection
- Short Circuit Protection
- Packages: SOT23-3 and SOT89-3L
