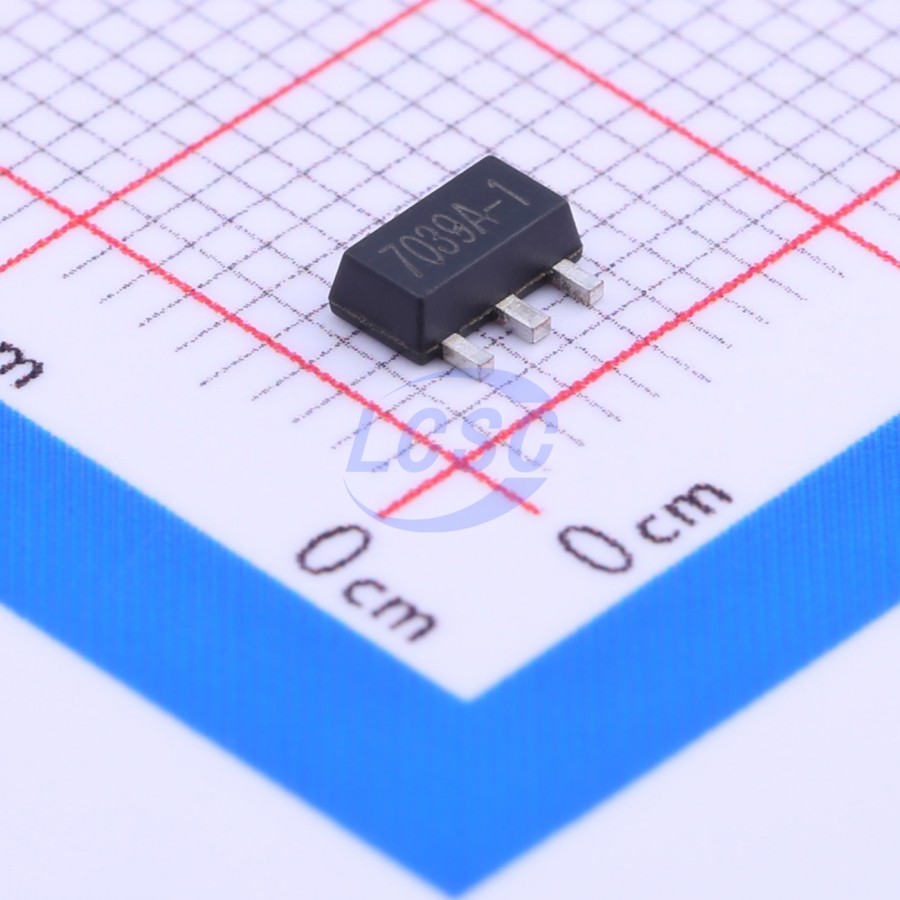

H7039A-1
Lagging function 1.5V~16V 1 SOT-89-3 Supervisors
Low Power Voltage Detector
- Manufacturer
- Siproin
- Manufacturer part #
- H7039A-1
- Store part #
- C277936
- Package / case
- SOT-89-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C277936
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.28 | ₹71.40 |
| 50+ | ₹11.51 | ₹575.50 |
| 150+ | ₹10.13 | ₹1,519.50 |
| 1,000+ | ₹9.02 | ₹9,020.00 |
| 2,000+ | ₹8.19 | ₹16,380.00 |
| 5,000+ | ₹7.78 | ₹38,900.00 |
5 × ₹14.28
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
H7039A-1
₹71.40 for 5 + GST
Specifications
- output type
- Open-drain
- Function
- Lagging function
- standby current
- 2uA
- Voltage - Supply
- 1.5V~16V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.9V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The H70XXA-1 series devices are a set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 7.0V. The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator, hysteresis circuit, and an output driver. CMOS technology ensures low power consumption. Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.
Applications
- Battery checkers
- Microcomputer reset
- Level selectors
- Battery memory backup
- Power failure detectors
- Non-volatile RAM signal storage protectors
Key features
- Low power consumption
- High input voltage (up to 15V)
- Low temperature coefficient
- Output voltage accuracy: tolerance ±1% or ±2%
- Built-in hysteresis characteristic
- TO92, SOT89, SOT23 and SOT23-3 package
