SiproinDatasheet (PDF)

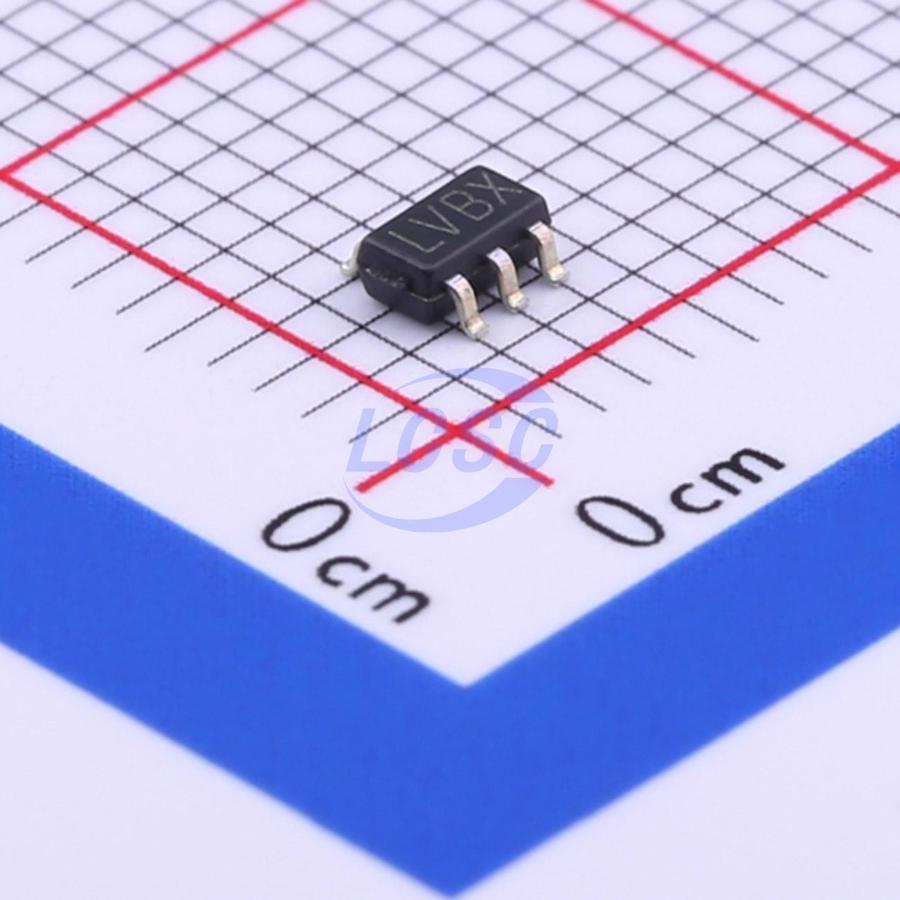

H7211-12M5R
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
CMOS LDO with high ripple rejection ratio, low noise, and ultra-fast response
- Manufacturer
- Siproin
- Manufacturer part #
- H7211-12M5R
- Store part #
- C411013
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C411013
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.05 | ₹90.50 |
| 100+ | ₹7.28 | ₹728.00 |
| 300+ | ₹6.39 | ₹1,917.00 |
| 3,000+ | ₹5.61 | ₹16,830.00 |
| 6,000+ | ₹5.08 | ₹30,480.00 |
| 9,000+ | ₹4.80 | ₹43,200.00 |
10 × ₹9.05
₹90.50
excl. GST
₹106.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7211-12M5R
₹90.50 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+85℃@(Ta)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
The H7211 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn- on times. The H7211 has excellent performance and provides ultra- low noise and very low static current for the battery supply system. H7211 shutdown mode, power consumption is less than 0.1μA fast opening time is less than 50μs The H7211 only needs to be configured with low ESR value ceramic capacitors, suitable for high- power applications, especially in handheld wireless equipment and RF products, which can effectively reduce the required circuit board space of the product.
Applications
- Battery- powered equipment
- Mobile phones
- Portable consumer equipment
- Handheld computer, laptop computer
- Radio control equipment
Key features
- Low output noise: 50μVrms(10Hz ~ 100kHz)
- Low voltage drop: 150mV@Iout = 150mA
- Low quiescent current: 30μA
- High PARR: 75dB@1kHz
- Input voltage range: 2.0V ~ 6.0V
- Maximum output current: 300mA
- Output voltage range: 1.0V ~ 5.0V
- Output voltage accuracy: tolerance ±2%
- SOT23 - 5 and DFN1×1 - 4 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7615-12M5R#C3011516Siproin · SOT-23-5 | Siproin | SOT-23-5 | 630 | ₹12.28 · 630 in stock | View |
