SiproinDatasheet (PDF)

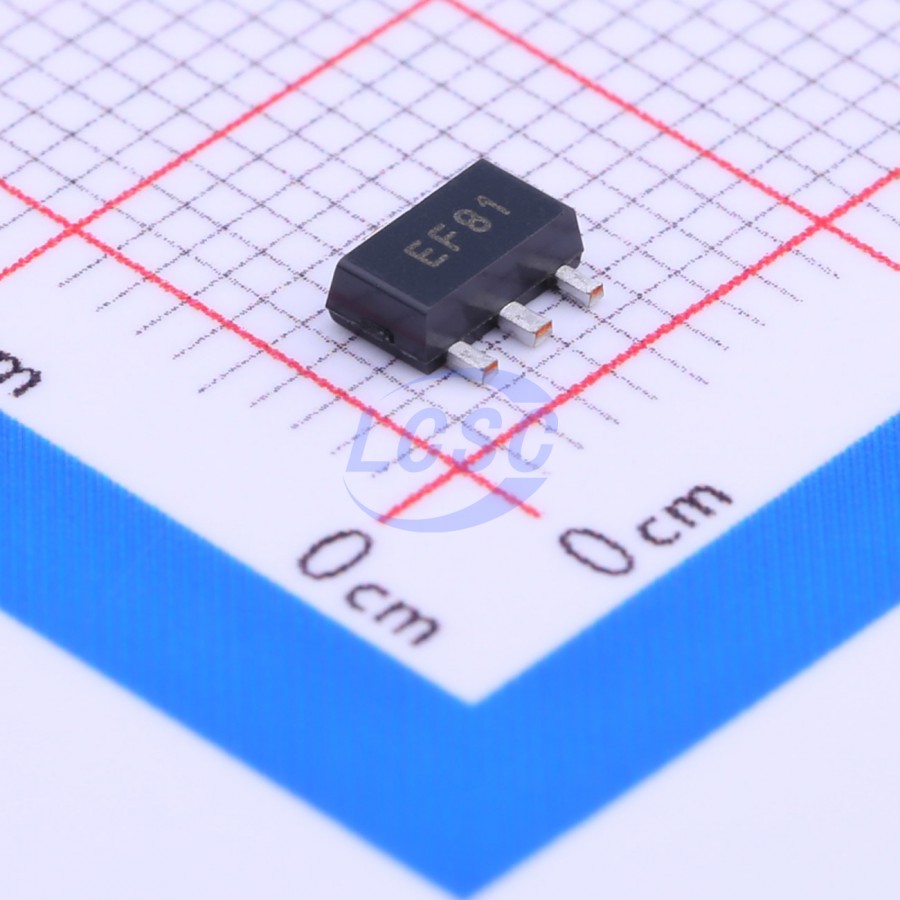

H7230-1
3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
400mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7230-1
- Store part #
- C277848
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C277848
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.71 | ₹88.55 |
| 50+ | ₹14.28 | ₹714.00 |
| 150+ | ₹12.57 | ₹1,885.50 |
| 1,000+ | ₹10.85 | ₹10,850.00 |
| 2,000+ | ₹9.83 | ₹19,660.00 |
| 5,000+ | ₹9.31 | ₹46,550.00 |
5 × ₹17.71
₹88.55
excl. GST
₹104.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
H7230-1
₹88.55 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 400mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The H72XX-1 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The H72XX-1 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- GRS Receivers
- Hand-Hold Equipment
- Wireless LAN
Key features
- Low voltage drop: 0.17V@100mA
- Low Quiescent Current: 1.0uA
- High input voltage: 15V
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
- Built-in current limiter
- Large Output Current: >0.40A
- SOT89, SOT23-3 and SOT23-5 packages
