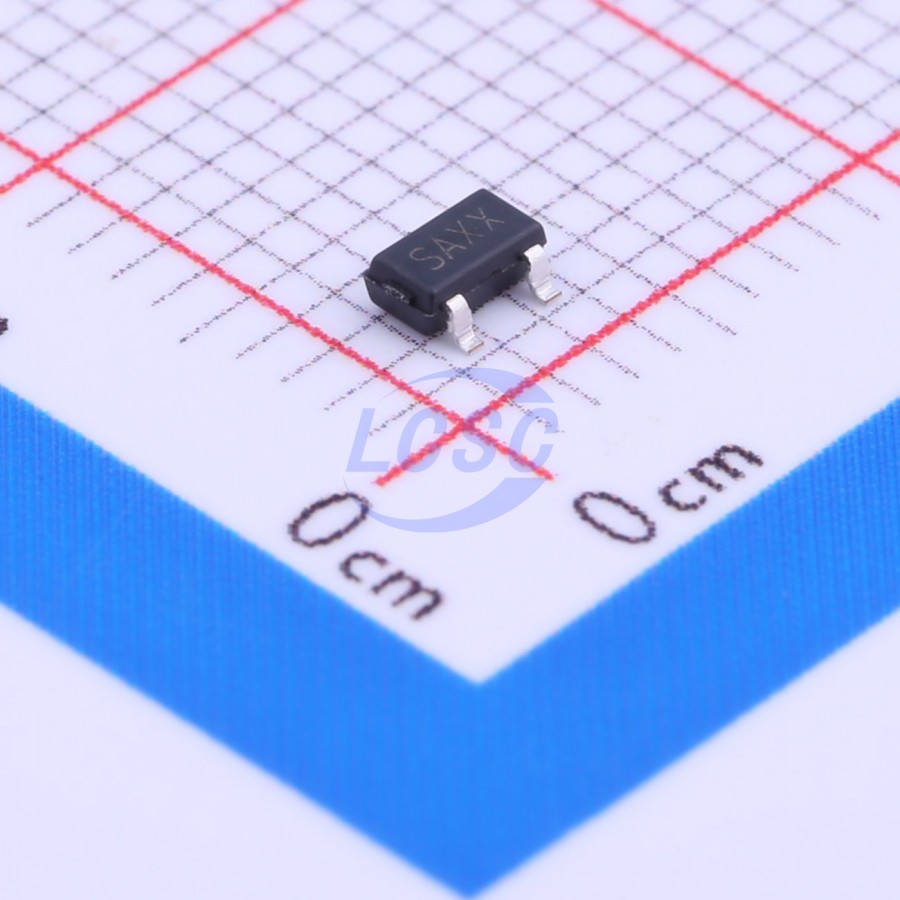

Siproin

H7233-1

3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-3RoHSActive

400mA Low Power LDO

Manufacturer: Siproin
Manufacturer part #: H7233-1
Store part #: C277859
Package / case: SOT-23-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,605 in stock

#C277859

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
5+	₹14.70	₹73.50
50+	₹11.63	₹581.50
150+	₹10.09	₹1,513.50
500+	₹8.94	₹4,470.00
3,000+	₹8.02	₹24,060.00
6,000+	₹7.55	₹45,300.00

Quantity (min 5, multiples of 5)

5 × ₹14.70

₹73.50

excl. GST

₹86.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

H7233-1

₹73.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 1uA
Output Configuration: Positive
Operating Voltage: 15V
Output Current: 400mA
Features: Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.12 g

Overview

The H72XX-1 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The H72XX-1 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
