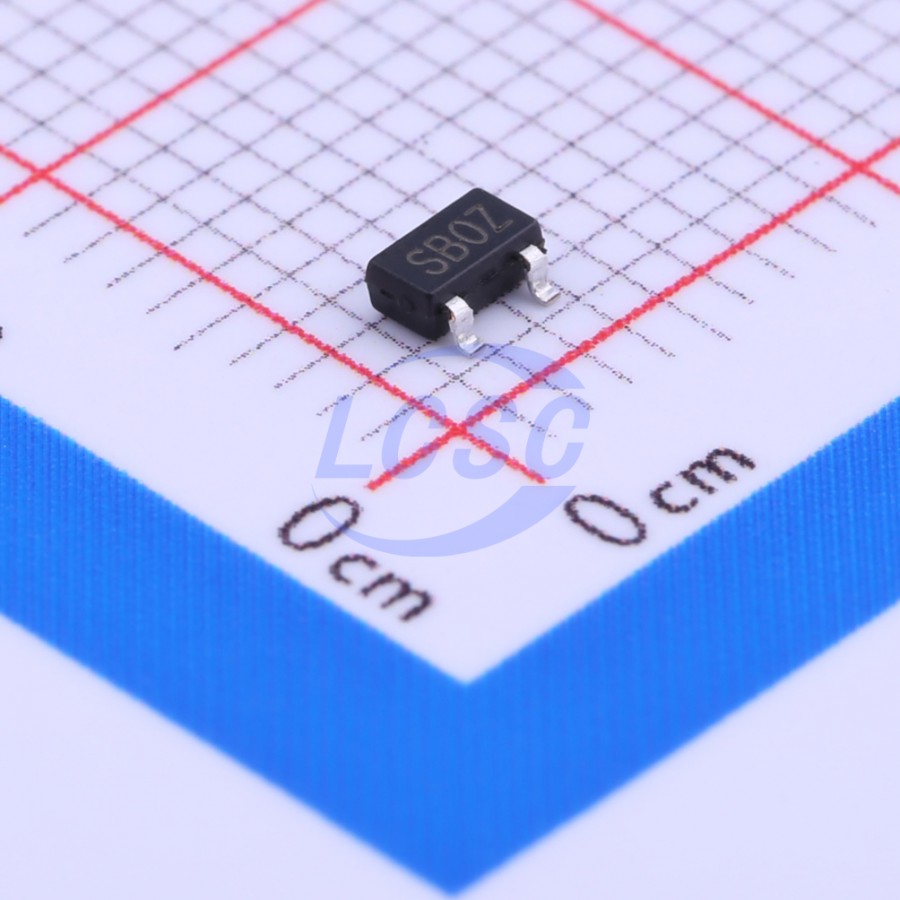

H7250-1
5V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
400mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7250-1
- Store part #
- C277861
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,615 in stock
#C277861
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.28 | ₹71.40 |
| 50+ | ₹11.29 | ₹564.50 |
| 150+ | ₹9.79 | ₹1,468.50 |
| 500+ | ₹8.67 | ₹4,335.00 |
| 3,000+ | ₹7.77 | ₹23,310.00 |
| 6,000+ | ₹7.33 | ₹43,980.00 |
5 × ₹14.28
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7250-1
₹71.40 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 400mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The H72XX-1 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The H72XX-1 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- GRS Receivers
- Hand-Hold Equipment
- Wireless LAN
Key features
- Low voltage drop: 0.17V@100mA
- Low Quiescent Current: 1.0uA
- High input voltage: 15V
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
- Built-in current limiter
- Large Output Current: >0.40A
- SOT89, SOT23-3 and SOT23-5 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7603P50MR#C411029Siproin · SOT-23-3 | Siproin | SOT-23-3 | 3,265 | ₹16.11 · 3,265 in stock | View |
