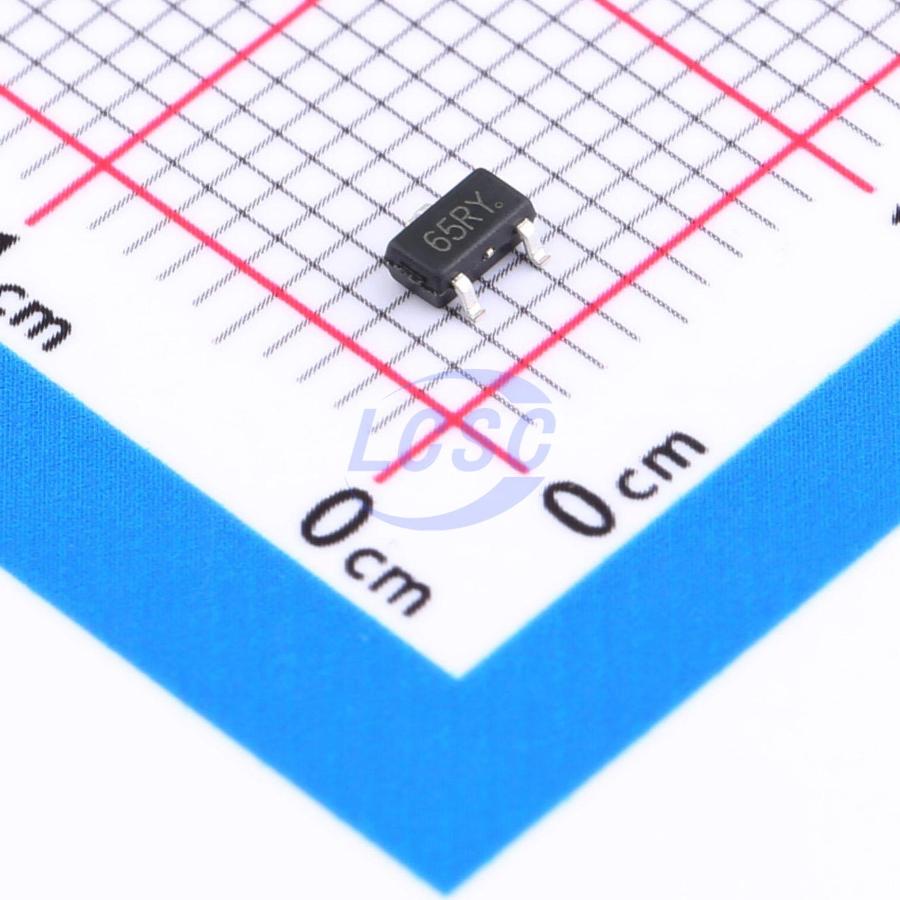

H7605-23MR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
SOT-23-3ROHS CompliantActive
LDO with 300mA output current, 8V input voltage, and low power consumption
- Manufacturer
- Siproin
- Manufacturer part #
- H7605-23MR
- Store part #
- C45359459
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,050 in stock
#C45359459
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.09 | ₹90.90 |
| 100+ | ₹7.21 | ₹721.00 |
| 300+ | ₹6.27 | ₹1,881.00 |
| 3,000+ | ₹5.57 | ₹16,710.00 |
| 6,000+ | ₹5.01 | ₹30,060.00 |
| 9,000+ | ₹4.72 | ₹42,480.00 |
10 × ₹9.09
₹90.90
excl. GST
₹107.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7605-23MR
₹90.90 for 10 + GST
Specifications
- Output Voltage
- 2.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
H7605 is a high-precision, low-power, positive-voltage three-terminal voltage regulator fabricated using CMOS and laser trimming technology. It delivers high current even with small input/output voltage differentials. The H7605 consists of a current limiter circuit, a driver transistor, a precision reference voltage, and an error correction circuit. The foldback circuit of the current limiter provides short-circuit protection and output current limiting on the output pin. The output voltage is selectable from 1.2V to 5.0V in 0.1V increments.
Applications
- Cameras, camcorders
- Portable video players
- Mobile phones
- Portable gaming consoles
- Battery-powered devices
- Voltage reference sources
Key features
- Maximum output current: 300mA
- Maximum input voltage: 8V
- Low power consumption, low dropout
- Low temperature coefficient
- Low quiescent current: 1.5μA@6V
- Output voltage accuracy: ±2%
- SOT23, SOT23-3 and SOT89-3 packages
