SiproinDatasheet (PDF)

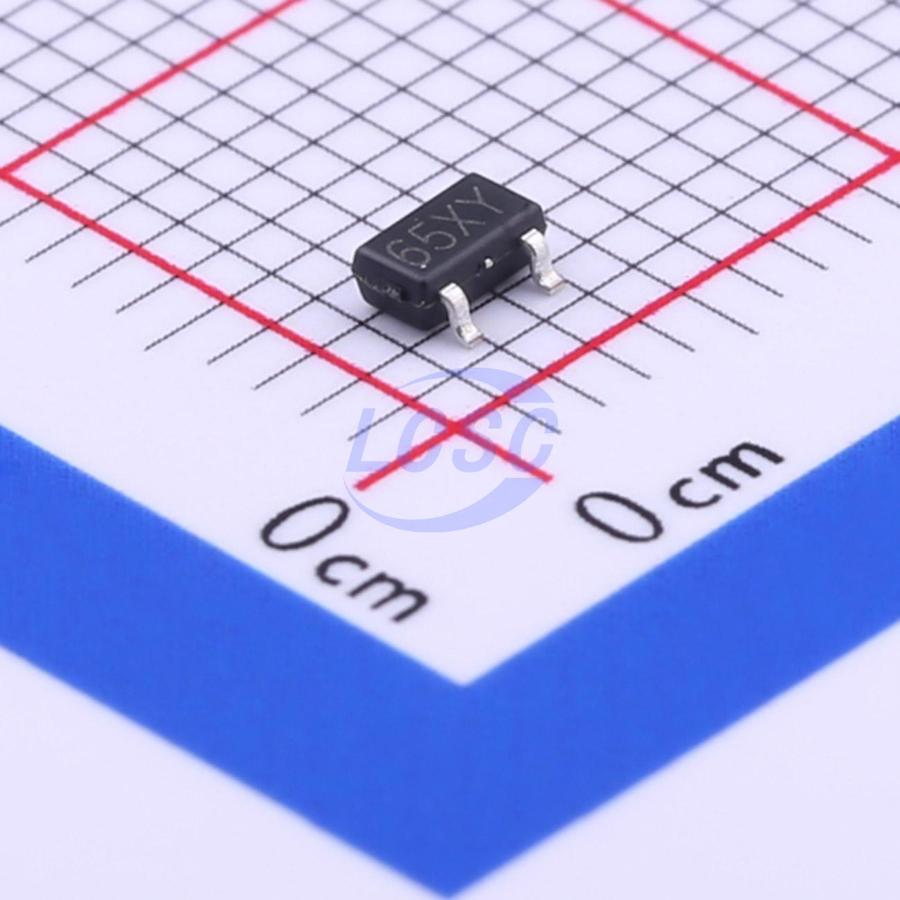

H7605-28MR
2.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
300mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7605-28MR
- Store part #
- C411036
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,455 in stock
#C411036
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.29 | ₹56.45 |
| 50+ | ₹8.96 | ₹448.00 |
| 150+ | ₹7.79 | ₹1,168.50 |
| 500+ | ₹6.92 | ₹3,460.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
5 × ₹11.29
₹56.45
excl. GST
₹66.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7605-28MR
₹56.45 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Low Quiescent Current: 1.5uA at 6V Output voltage accuracy: tolerance ±2% H7605 series are highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The H7605 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s fold back circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. H7605 series are available in SOT-23, SOT23-3 and SOT-89 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP6206-28MR#C2845046Siproin · SOT-23-3 | Siproin | SOT-23-3 | 2,250 | ₹8.36 · 2,250 in stock | View |
 | H7228-1#C277857Siproin · SOT-23-3 | Siproin | SOT-23-3 | 635 | ₹13.68 · 635 in stock | View |
 | SSP6206-28NR#C277880Siproin · SOT-23 | Siproin | SOT-23 | 280 | ₹5.05 · 280 in stock | View |
