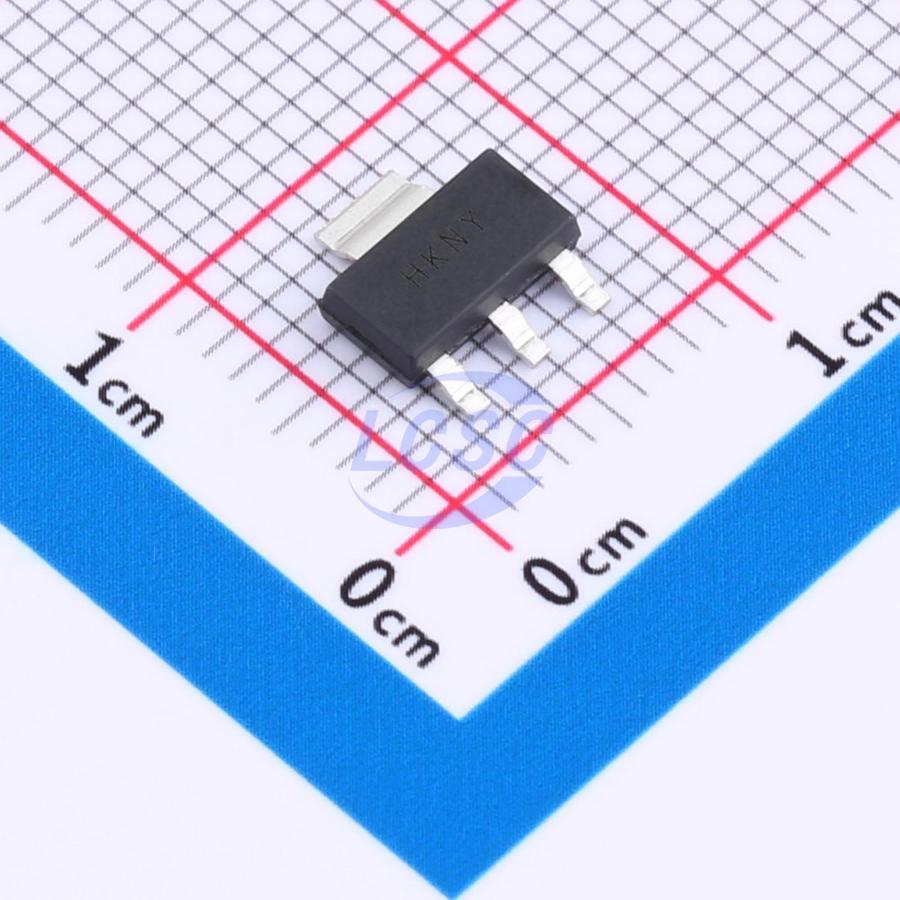

H7650-35GR
3.5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-3RoHSActive
750mA Low Power High PSRR LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7650-35GR
- Store part #
- C411046
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,035 in stock
#C411046
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.34 | ₹96.70 |
| 50+ | ₹15.39 | ₹769.50 |
| 150+ | ₹13.40 | ₹2,010.00 |
| 500+ | ₹11.92 | ₹5,960.00 |
| 2,500+ | ₹10.28 | ₹25,700.00 |
| 5,000+ | ₹9.68 | ₹48,400.00 |
5 × ₹19.34
₹96.70
excl. GST
₹114.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
H7650-35GR
₹96.70 for 5 + GST
Specifications
- Output Voltage
- 3.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Output Current
- 750mA
- Operating Voltage
- 8V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.153 g
Overview
The H7650 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The H7650 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.
Applications
- Battery-powered equipment
- GRS Receivers
- Hand-Hold Equipment
- Wireless LAN
Key features
- Low voltage drop: 0.06V@100mA
- Low Quiescent Current: 25uA at 5.0V
- High input voltage: 8V
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
- SOT89, SOT223 and SOT23-5 package
