SiproinDatasheet (PDF)

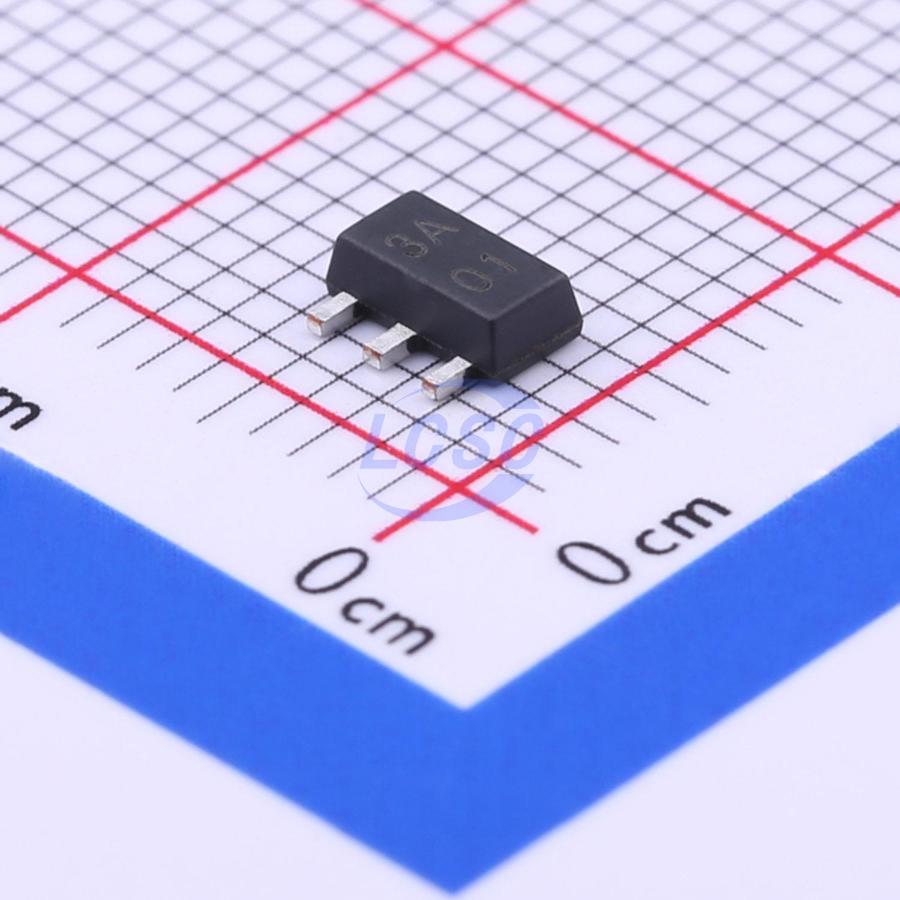

H7651-30PR
3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
1A Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7651-30PR
- Store part #
- C411049
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,925 in stock
#C411049
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.50 | ₹87.50 |
| 50+ | ₹13.85 | ₹692.50 |
| 150+ | ₹12.03 | ₹1,804.50 |
| 1,000+ | ₹10.58 | ₹10,580.00 |
| 2,000+ | ₹9.49 | ₹18,980.00 |
| 5,000+ | ₹8.94 | ₹44,700.00 |
5 × ₹17.50
₹87.50
excl. GST
₹103.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
H7651-30PR
₹87.50 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
The H7651 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The H7651 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89 and SOT223 packages are available.
Applications
- Battery-powered equipment
- GRS Receivers
- Hand-Hold Equipment
- Wireless LAN
Key features
- Low voltage drop: 0.06V@100mA
- Low Quiescent Current: 2uA at 5.0V
- High input voltage: 8.5V
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7903P30PR#C5199831Siproin · SOT-89-3L | Siproin | SOT-89-3L | 290 | ₹28.62 · 290 in stock | View |
