HXY MOSFETDatasheet (PDF)

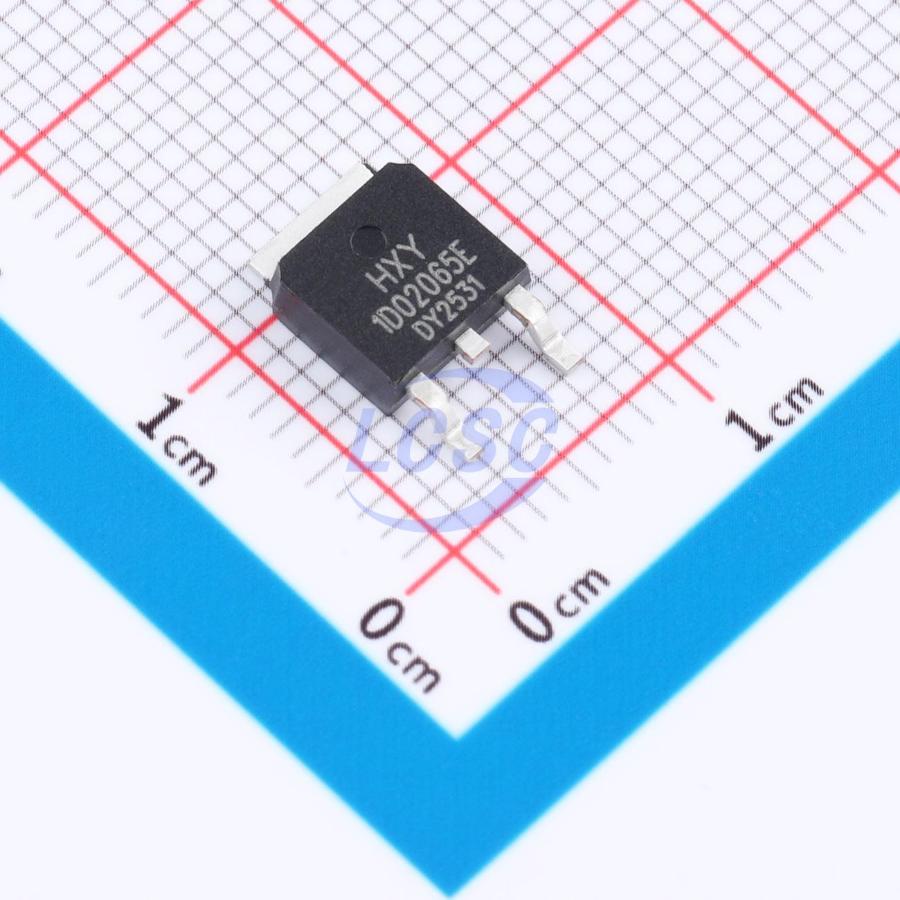

HC1D02065E
SiC Diode 650V 7.5A Surface Mount TO-252-2L
TO-252-2LRoHSActive
DIODE SIC 650V 7.5A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC1D02065E
- Store part #
- C41428787
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
128 in stock
#C41428787
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.63 | ₹93.63 |
| 10+ | ₹75.36 | ₹753.60 |
| 30+ | ₹66.34 | ₹1,990.20 |
| 100+ | ₹57.31 | ₹5,731.00 |
| 500+ | ₹51.85 | ₹25,925.00 |
| 1,000+ | ₹49.12 | ₹49,120.00 |
1 × ₹93.63
₹93.63
excl. GST
₹110.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HC1D02065E
₹93.63 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.3V@2A
- Reverse Leakage Current (Ir)
- 10uA@650V
- Non-Repetitive Peak Forward Surge Current
- 18A
- Current - Rectified
- 7.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
This product series delivers advanced performance, designed specifically for high-frequency applications requiring high efficiency and reliability.
Applications
- Uninterruptible power supplies
- Power inverters
- High-performance switch-mode power supplies
- Power factor correction
Key features
- Low conduction loss due to low VF
- Extremely low switching loss due to small QC
- High robustness due to improved surge current capability
- Industry-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HNXPSC04650D6J#C42389307HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 44 | ₹115.62 · 44 in stock | View |
 | FFSD0465A-HXY#C51896350HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 37 | ₹211.16 · 37 in stock | View |
 | DSC04065D1-HXY#C51896364HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 47 | ₹211.16 · 47 in stock | View |
 | CSD01060E-TR-HXY#C53467989HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 16 | ₹153.65 · 16 in stock | View |
 | FFD04H60S-HXY#C53467995HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹131.19 · 48 in stock | View |
