HXY MOSFETDatasheet (PDF)

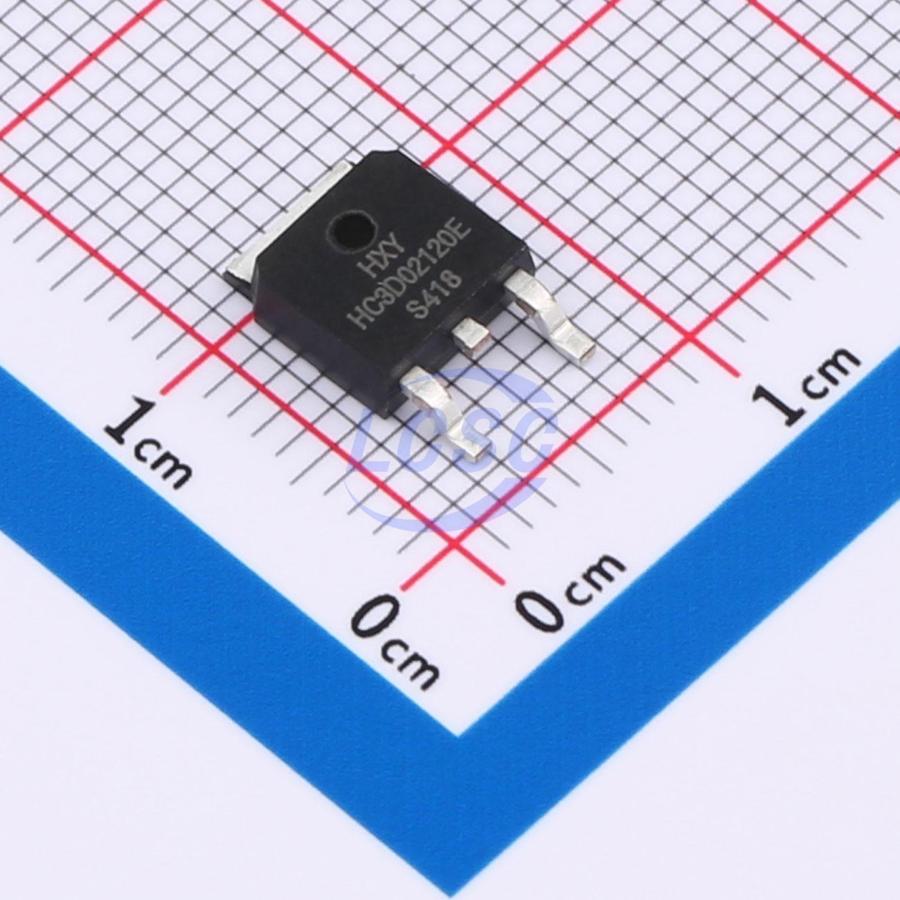

HC3D02120E
SiC Diode Independent 1200V Surface Mount TO-252-2L
TO-252-2LRoHSActive
DIODE SIC 1.2kV TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC3D02120E
- Store part #
- C22449566
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
96 in stock
#C22449566
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.54 | ₹241.54 |
| 10+ | ₹204.46 | ₹2,044.60 |
| 30+ | ₹181.05 | ₹5,431.50 |
| 100+ | ₹157.41 | ₹15,741.00 |
| 500+ | ₹146.58 | ₹73,290.00 |
| 1,000+ | ₹142.02 | ₹1,42,020.00 |
1 × ₹241.54
₹241.54
excl. GST
₹285.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HC3D02120E
₹241.54 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 1.35V@2A
- Reverse Leakage Current (Ir)
- 1uA@1200V
- Current - Rectified
- 10A
- Non-Repetitive Peak Forward Surge Current
- 24A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.393 g
Overview
Applications
- Uninterruptible power supplies
- Power inverters
- High-performance switching power supplies
- Power factor correction
Key features
- Low forward voltage drop for reduced conduction loss
- Ultra-low switching loss via minimal QC
- High robustness with superior surge current capability
- Industrial-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IDM05G120C5XTMA1-HXY#C52194990HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 496 | ₹256.50 · 496 in stock | View |
 | STPSC10H12B2-TR-HXY#C52195027HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹435.97 · 20 in stock | View |
 | HC4D05120E#C42389273HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 47 | ₹243.88 · 47 in stock | View |
 | HC3D10120E#C22449568HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 26 | ₹468.54 · 26 in stock | View |
 | HSTPSC10H12BTR#C42389196HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 123 | ₹410.43 · 123 in stock | View |
