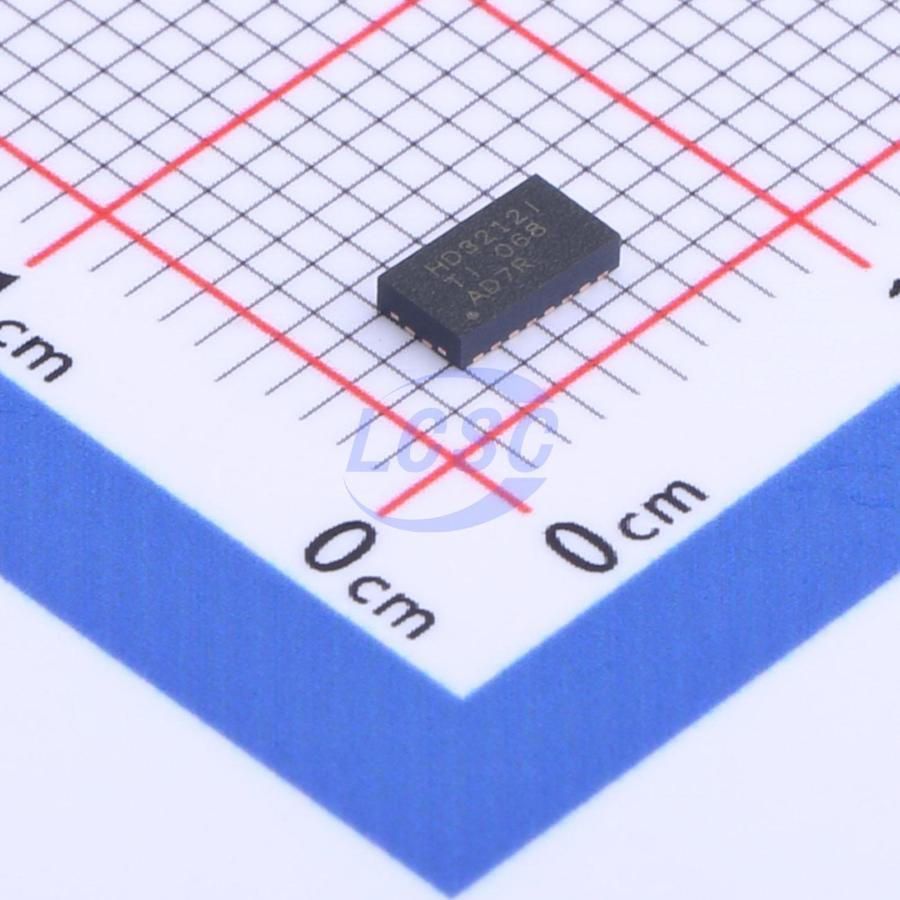

HD3SS3212IRKSR

3V~3.6V DHVQFN-20-EP(2.5x4.5) Analog Switches - Special Purpose RoHS

DHVQFN-20-EP(2.5x4.5)ROHS3 CompliantActive

Dual-channel differential 2:1/1:2 USB 3.1 multiplexer/demultiplexer

Manufacturer: TI
Manufacturer part #: HD3SS3212IRKSR
Store part #: C544517
Package / case: DHVQFN-20-EP(2.5x4.5)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,782 in stock

#C544517

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹206.89	₹206.89
10+	₹177.59	₹1,775.90
30+	₹161.53	₹4,845.90
100+	₹143.28	₹14,328.00
500+	₹130.26	₹65,130.00
1,000+	₹126.78	₹1,26,780.00

Quantity (min 1)

1 × ₹206.89

₹206.89

excl. GST

₹244.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HD3SS3212IRKSR

₹206.89 for 1 + GST

Specifications

Voltage - Supply: 3V~3.6V
Quiescent Supply Current: 20uA
Propagation Delay (tpd): 80ps
Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.055 g

Overview

The HD3SS3212 is a high-speed bidirectional passive switch configurable as either a multiplexer or demultiplexer, designed for USB Type-C™ applications supporting USB 3.1 Gen 1 and Gen 2 data rates. The device switches between two differential channels (Port B to Port A, or Port C to Port A) via the SEL control pin. The HD3SS3212 is a general-purpose analog differential passive switch supporting differential signaling with a common-mode voltage range of 0–2V and differential amplitude up to 1800mVpp, suitable for any high-speed interface application. The device employs adaptive tracking to ensure consistent channel performance across the entire common-mode voltage range. The device offers excellent dynamic characteristics, enabling high-speed switching with minimal signal eye diagram degradation and very low added jitter. Power consumption is <2mW in operating mode and <20μW in shutdown mode (switchable via the OEn pin).

Applications

USB Type-C™ ecosystem
Desktop and notebook PCs
Server/SAN PCI Express backplane
Shared I/O port FPDLink II and FPDLink III switches

Key features

Mux/demux solution for USB Type-C™ ecosystem supporting USB 3.1 Gen 1 and Gen 2 data transfer rates
Compatible with MIPI DSI/CSI, FPDLink III, LVDS, and PCIe Gen II and Gen III
Operation up to 10Gbps, -3dB differential bandwidth exceeding 8GHz
Excellent dynamic performance (at 5GHz): crosstalk = -32dB, off isolation = -19dB, insertion loss = -1.6dB, return loss = -12dB
Bidirectional mux/demux differential switch supporting 0 to 2V common-mode voltage
Single supply voltage VCC: 3.3V ±10%
Industrial temperature range -40°C to 85°C (HD3SS3212IRKS)
