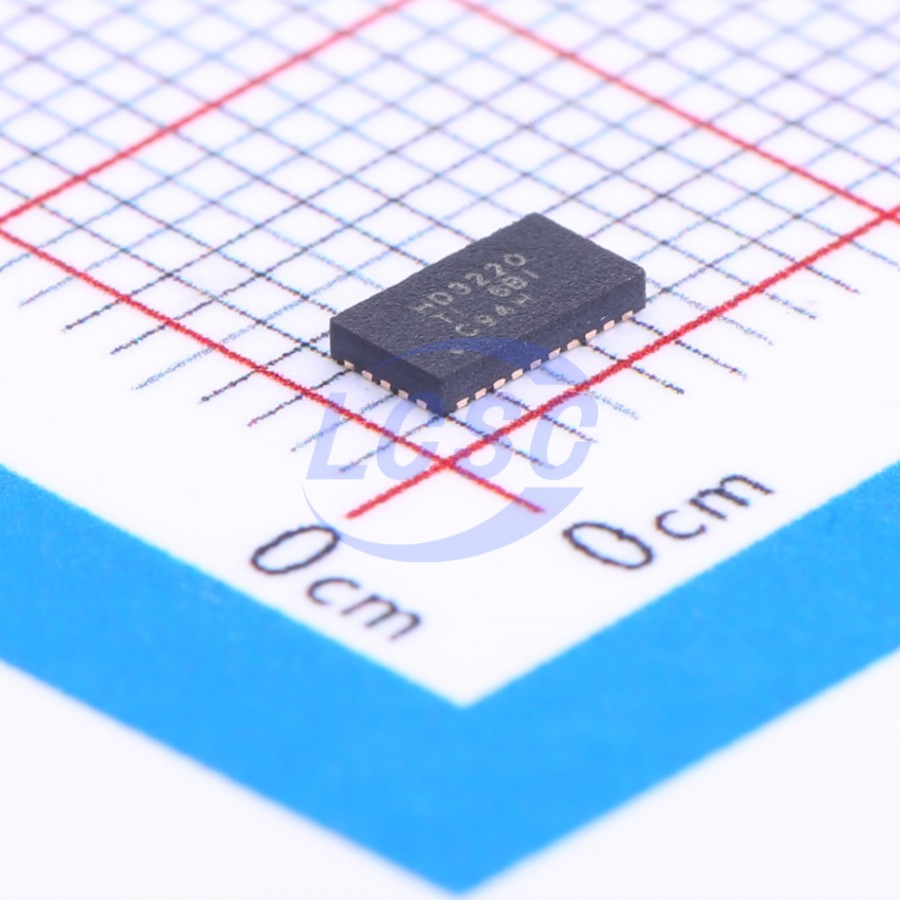

HD3SS3220RNHR

WQFN-30-EP(2.5x4.5) Power Management - Specialized RoHS

WQFN-30-EP(2.5x4.5)ROHS3 CompliantActive

USB Type-C DRP Port Controller with SuperSpeed 2:1 MUX

Manufacturer: TI
Manufacturer part #: HD3SS3220RNHR
Store part #: C165155
Package / case: WQFN-30-EP(2.5x4.5)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,047 in stock

#C165155

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹215.42	₹215.42
10+	₹187.12	₹1,871.20
30+	₹169.46	₹5,083.80
100+	₹136.47	₹13,647.00
500+	₹128.17	₹64,085.00
1,000+	₹124.75	₹1,24,750.00

Quantity (min 1)

1 × ₹215.42

₹215.42

excl. GST

₹254.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HD3SS3220RNHR

₹215.42 for 1 + GST

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.094 g

Overview

HD3SS3220 is a USB SuperSpeed (SS) 2:1 mux with DRP port controller. The device provides Channel Configuration (CC) logic and 5V VCONN sourcing for ecosystems implementing USB Type-C. The HD3SS3220 can be configured as a Downstream Facing Port (DFP), Upstream Facing Port (UFP) or a Dual Role Port (DRP) making it ideal for any application. The HD3SS3220, in DRP mode, alternates presenting itself as a DFP or UFP according to the Type-C specifications. The CC logic block monitors the CC1 and CC2 pins for pull-up or pull-down resistances to determine when a USB port has been attached and its port role. Once a USB port has been attached, the CC logic also determines the orientation of the cable and configures the USB SS mux accordingly. Finally, CC logic advertises or detects Type-C current mode – Default, Mid, or High in DFP and UFP modes respectively. Excellent dynamic characteristics of the integrated mux allow switching with minimum attenuation to the SS signal eye diagram and very little added jitter. The device’s switch paths deploy adaptive common mode voltage tracking resulting identical channel despite different common mode voltage for RX and TX channels.

Applications

USB Host, Device, Hub
Mobile Phones, Tablets and Notebooks
USB Peripherals such as Thumb Drives, Portable Hard Disks, Set Top Box

Key features

USB Type-C Port Controller with Integrated 2:1 SuperSpeed Mux Compatible to USB Type-C Specifications
Supports USB 3.1 G1 and G2 up to 10 Gbps
Supports up to 15 W of Power Delivery with 3-A Current
Advertisement and Detection Mode Configuration: Host Only – DFP/Source, Device Only – UFP/Sink, Dual Role Port - DRP
Channel Configuration (CC) Attach of USB Port Detection
Cable Orientation Detection
Role Detection – Type-C Current Mode (Default, Mid, High)
V(BUS) Detection and VCONN Support for Active Cables
Audio and Debug Accessory Support
Supports for Try.SRC and Try.SNK DRP Modes
Configuration Control through GPIO and I²C
Low Active and Standby Current Consumptions
Industrial Temperature Range of –40 to 85°C
