HEERMICRDatasheet (PDF)

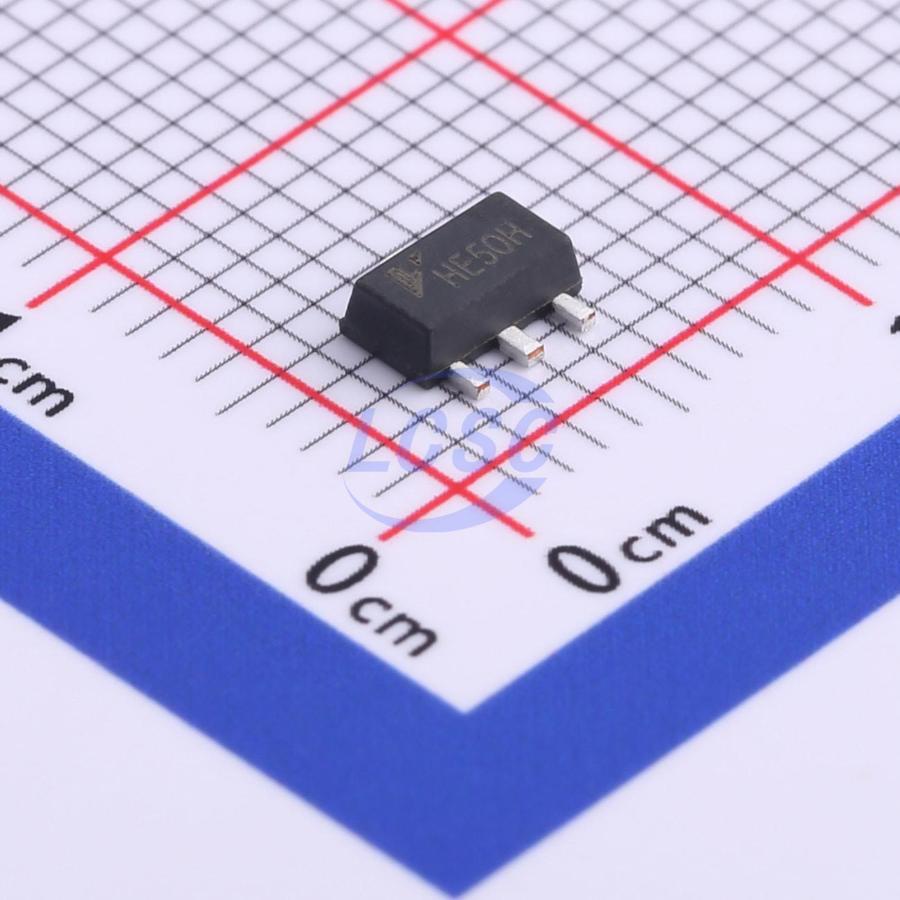

HE2021A50HPR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
200mA Low Power LDO
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE2021A50HPR
- Store part #
- C711944
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,065 in stock
#C711944
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.05 | ₹90.25 |
| 50+ | ₹14.39 | ₹719.50 |
| 150+ | ₹12.57 | ₹1,885.50 |
| 1,000+ | ₹9.71 | ₹9,710.00 |
| 2,000+ | ₹8.61 | ₹17,220.00 |
| 5,000+ | ₹8.07 | ₹40,350.00 |
5 × ₹18.05
₹90.25
excl. GST
₹106.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HE2021A50HPR
₹90.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 35V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.172 g
Overview
The HE2021 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 35V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Communication equipment
- Audio/Video equipment
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- Voltage drop: 50mV@10mA
- High input voltage (up to 35V)
- Output voltage accuracy: tolerance ±1%
- TO92, SOT23 and SOT89 package
- PSRR: 60dB@KHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HE2021A50HPBR#C5123427HEERMICR · SOT-89B-3 | HEERMICR | SOT-89B-3 | 485 | ₹18.64 · 485 in stock | View |
 | HE2240A50HPR#C5123364HEERMICR · SOT-89-3 | HEERMICR | SOT-89-3 | 785 | ₹12.41 · 785 in stock | View |
 | HT7550-1(SOT89-3)#C49374776HEERMICR · SOT-89-3 | HEERMICR | SOT-89-3 | 1,480 | ₹5.90 · 1,480 in stock | View |
