HEERMICRDatasheet (PDF)

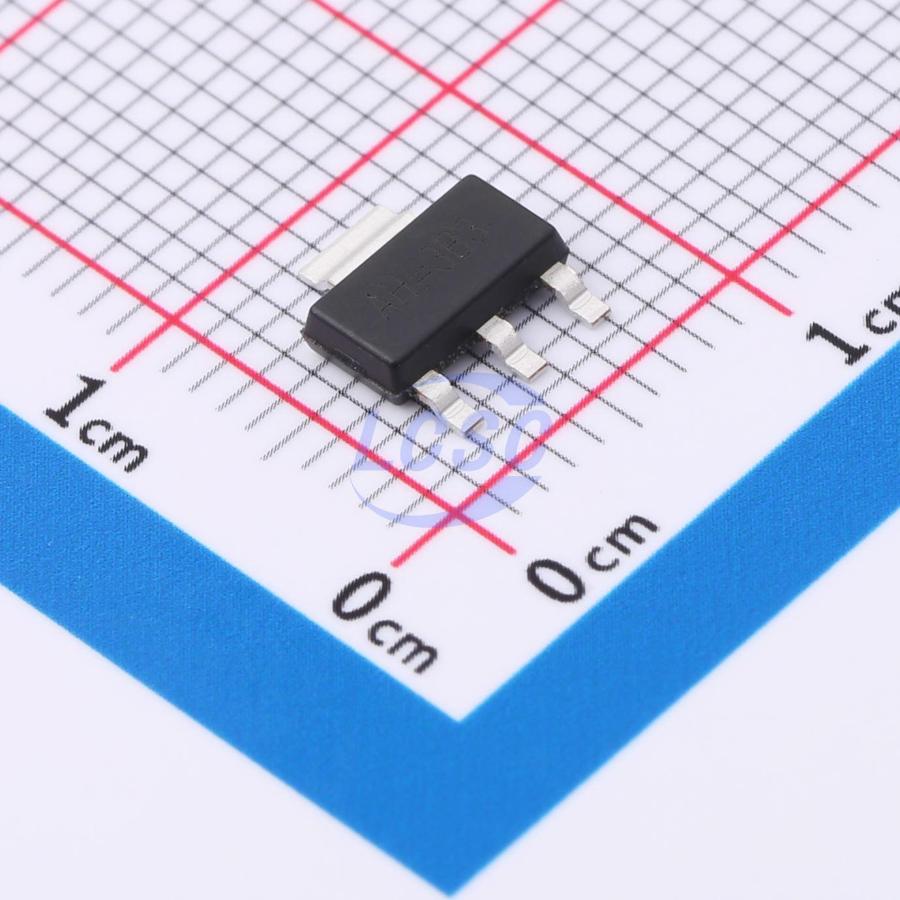

HE2028A33FR
3.3V Positive SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
800mA Low Power LDO
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE2028A33FR
- Store part #
- C5199431
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C5199431
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.95 | ₹199.75 |
| 50+ | ₹31.75 | ₹1,587.50 |
| 150+ | ₹28.25 | ₹4,237.50 |
| 500+ | ₹23.87 | ₹11,935.00 |
| 2,500+ | ₹20.12 | ₹50,300.00 |
| 5,000+ | ₹18.95 | ₹94,750.00 |
5 × ₹39.95
₹199.75
excl. GST
₹235.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HE2028A33FR
₹199.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 800mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed;Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
The HE2028 series is a high voltage, ultralow-power, low dropout voltage regulator. The device can deliver 800mA output current with a dropout voltage of 360mV and allows an input voltage as high as 50V. The typical quiescent current is only 2μA. The device is available in fixed output voltages of 3.3 and 5.0V. The device features integrated shortcircuit and thermal shutdown protection. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.
Applications
- Portable, Battery Powered Equipment
- Microcontroller Applications
- Smoke detector and sensor
- Audio/Video equipment
- Weighting Scales
- Home Automation
Key features
- Good Transient Response
- Output voltage accuracy: tolerance ±2%
- SOT223-3L, and TO252-3L package PSRR: 85dB@1KHz
- High input voltage (up to 50V)
- Low Power Consumption: 2μA (Typ)
- Maximum Output Current: 800mA
- Voltage drop: 360mV@100mA(3.3V)
