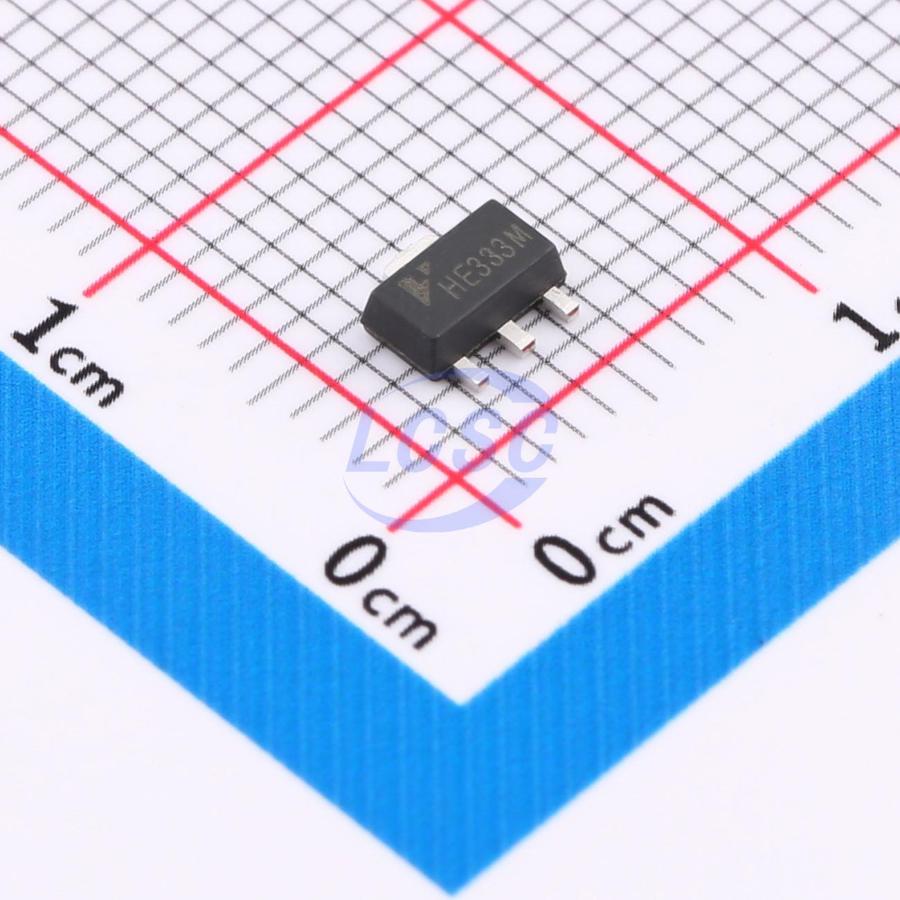

HE2031A33MPR
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
400mA Low Power LDO
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE2031A33MPR
- Store part #
- C711950
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,775 in stock
#C711950
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.21 | ₹111.05 |
| 50+ | ₹18.26 | ₹913.00 |
| 150+ | ₹16.29 | ₹2,443.50 |
| 1,000+ | ₹11.83 | ₹11,830.00 |
| 2,000+ | ₹10.64 | ₹21,280.00 |
| 5,000+ | ₹10.04 | ₹50,200.00 |
5 × ₹22.21
₹111.05
excl. GST
₹131.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HE2031A33MPR
₹111.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 400mA
- Operating Voltage
- 25V
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
The HE2031 series is a group of positive voltage output, three-pin regulators, it provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The HE2031 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Load Transient response has improved in comparison to the existing series. SOT89, SOT23-3 and SOT23 packages are available.
Applications
- Battery-powered equipment
- Hand-Hold Equipment
- GRS Receivers
- Wireless LAN
Key features
- Low voltage drop: 0.18V@100mA
- High input voltage: 25V
- Low temperature coefficient
- Large Output Current: >0.4A
- Low Quiescent Current: 2.0uA
- Output voltage accuracy: tolerance ±1%
- Built-in current limiter
- SOT89, SOT23 and SOT23-3 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HE2210PB33R#C22451361HEERMICR · SOT-89B-3 | HEERMICR | SOT-89B-3 | 950 | ₹21.37 · 950 in stock | View |
 | HE2210P33R#C49374755HEERMICR · SOT-89-3 | HEERMICR | SOT-89-3 | 970 | ₹21.37 · 970 in stock | View |
