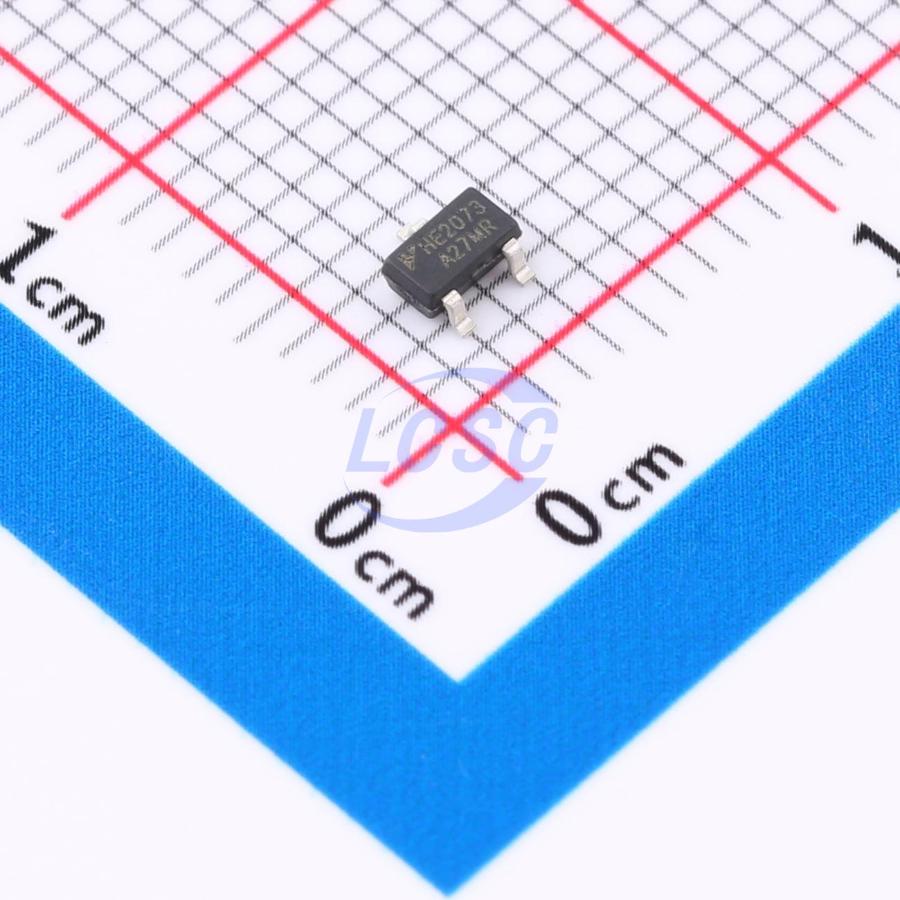

HE2073A27MR

The HE2073 series are high-precision, low-noise CMOS LDO voltage regulators. This series offers low output noise, high ripple rejection ratio, low dropout voltage, and extremely fast startup time, making it ideal for today's cutting-edge mobile phone applications. Integrated internally are a voltage reference, error amplifier, driver transistor, current limiter, and phase compensator. The output voltage is set via current trimming and can be selected from 1.2V to 5.0V in 100mV steps. The series is also fully compatible with low-ESR ceramic capacitors, helping to reduce costs and improve output stability. With excellent transient response performance and high PSRR achieved across a wide frequency range, high output stability is maintained even during frequent load fluctuations. The CE function allows the regulator output to be shut down, significantly reducing power consumption.

Applications

• Battery-powered devices
• Communication equipment
• Mobile phones
• Portable game consoles
• Cameras, camcorders
• Voltage reference source

Key features

• Low power consumption: 0.3μA (typical); Standby mode: 0.01μA
• Low dropout: 180mV@100mA@VOUT=5.3V (typical)
• High output current: ≥400mA
• Low temperature coefficient
• Integrated short-circuit protection
• Integrated over-temperature protection
• High input voltage (up to 6V)
• Output voltage accuracy: ±2% tolerance
• Built-in enable/output current limiting circuit
• SOT23-5, SOT23-3, SOT89-3L, DFN1x1-4 packages
• PSRR=60dB@1kHz
• Fixed output voltage options: 1.2V/1.5V/1.8V/2.5V/2.7V/2.8V/3.0V/3.3V/3.6V
