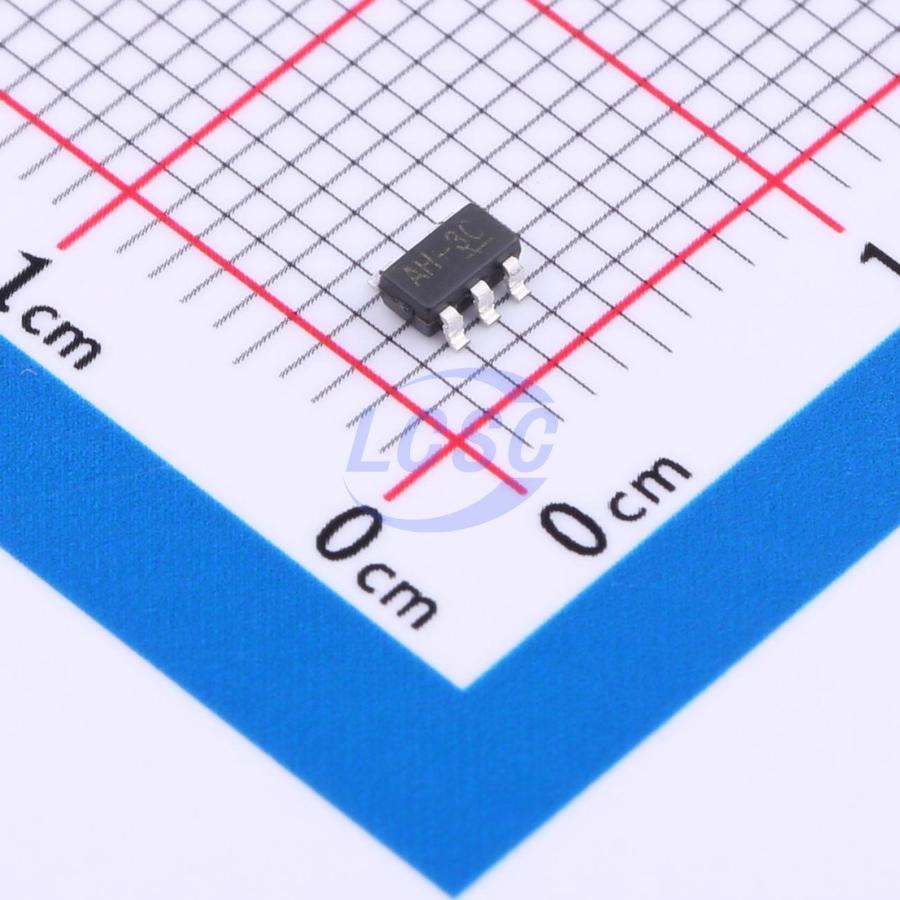

HEERMICR

HE2210M533R

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS CompliantActive

400mA Low Power LDO

Manufacturer: HEERMICR
Manufacturer part #: HE2210M533R
Store part #: C5123374
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,170 in stock

#C5123374

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹33.30	₹166.50
50+	₹27.31	₹1,365.50
150+	₹24.74	₹3,711.00
500+	₹21.54	₹10,770.00
3,000+	₹14.10	₹42,300.00
6,000+	₹13.26	₹79,560.00

Quantity (min 5, multiples of 5)

5 × ₹33.30

₹166.50

excl. GST

₹196.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HE2210M533R

₹166.50 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 30V
Output Current: 400mA
Output Type: Fixed
Features: Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The HE2210 series is a high voltage, ultralow-power, low dropout voltage regulator. The device can deliver 400mA output current with a dropout voltage of 350mV and allows an input voltage as high as 50V. The typical quiescent current is only 2μA. The device is available in fixed output voltages of 2.5, 2.8, 3.0, 3.3, 3.6 and 5.0V. The device features integrated short-circuit and thermal shutdown protection. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.
