HEERMICRDatasheet (PDF)

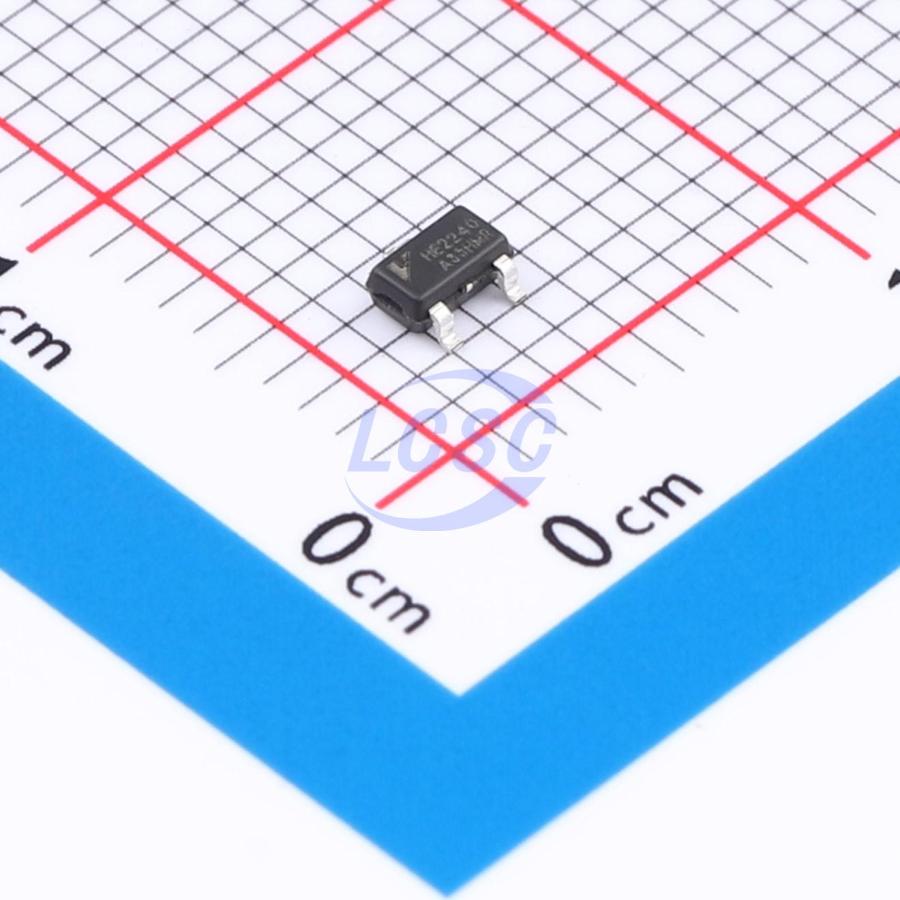

HE2240A33HMR
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE2240A33HMR
- Store part #
- C5123359
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,930 in stock
#C5123359
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.18 | ₹65.90 |
| 50+ | ₹10.58 | ₹529.00 |
| 150+ | ₹9.27 | ₹1,390.50 |
| 500+ | ₹8.31 | ₹4,155.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹13.18
₹65.90
excl. GST
₹77.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HE2240A33HMR
₹65.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.4uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The HE2240 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 1.4μA quiescent current at no load, the HE2240 is ideally suited for standby micro-control-unit systems, especially for always-on applications like E-meters, fire alarms, smoke detectors and other battery operated systems. The HE2240 retains all of the features that are common to low dropout regulators including a low dropout PMOS pass device, short circuit protection, and thermal shutdown. The device is available in fixed output voltages of 3.0, 3.3, 3.6, 4.0 and 5.0V. The device features integrated short-circuit and thermal shutdown protection. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.
Applications
- Audio/Video equipment
- Home Automation
Key features
- High input voltage (up to 40V)
- Low Power Consumption: 1.4μA (Typ)
- Maximum Output Current: 250mA
- Voltage drop: 350mV@100mA
- Good Transient Response
- Output voltage accuracy: tolerance ±2%
- SOT23-3 and SOT89 package
- PSRR: 80dB@1KHz
