HEERMICR

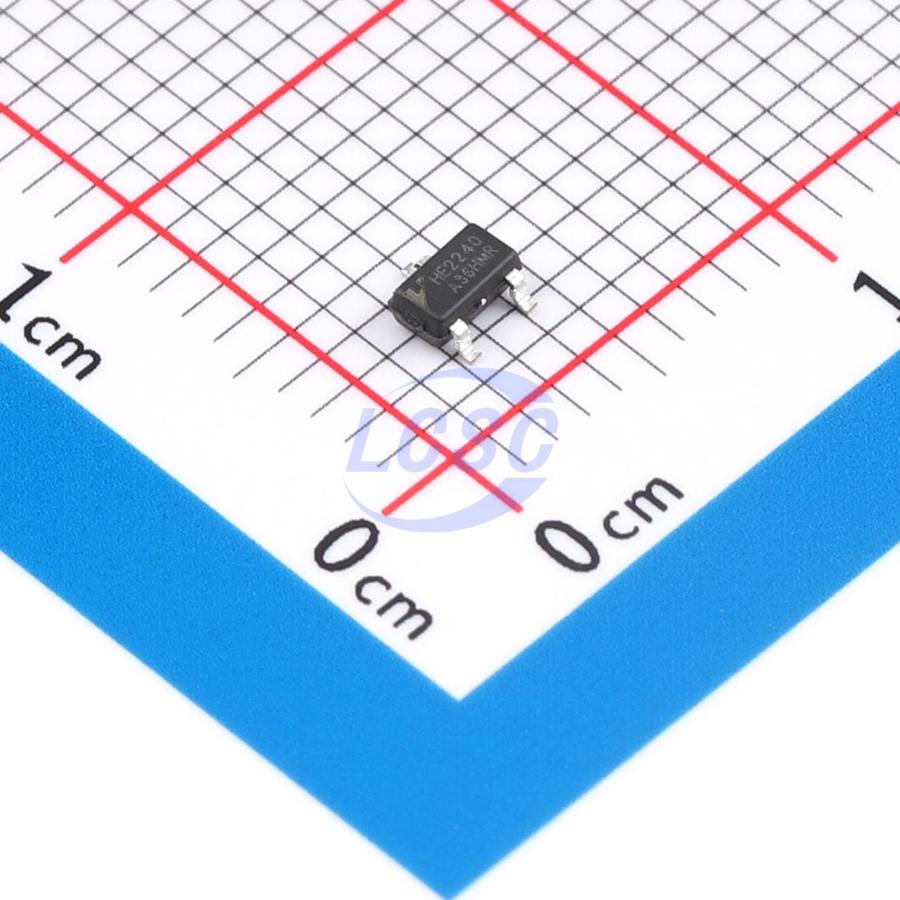

HE2240A36HMR

3.6V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-3RoHSActive

Manufacturer: HEERMICR
Manufacturer part #: HE2240A36HMR
Store part #: C5123361
Package / case: SOT-23-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,830 in stock

#C5123361

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹18.50	₹92.50
50+	₹14.72	₹736.00
150+	₹12.83	₹1,924.50
500+	₹11.42	₹5,710.00
3,000+	₹9.82	₹29,460.00
6,000+	₹9.25	₹55,500.00

Quantity (min 5, multiples of 5)

5 × ₹18.50

₹92.50

excl. GST

₹109.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HE2240A36HMR

₹92.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.6V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 1.4uA
Output Configuration: Positive
Output Current: 250mA
Operating Voltage: 40V
Output Type: Fixed
Features: Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The HE2240 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 1.4μA quiescent current at no load, the HE2240 is ideally suited for standby micro-control-unit systems, especially for always-on applications like E-meters, fire alarms, smoke detectors and other battery operated systems. The HE2240 retains all of the features that are common to low dropout regulators including a low dropout PMOS pass device, short circuit protection, and thermal shutdown. The device is available in fixed output voltages of 3.0, 3.3, 3.6, 4.0 and 5.0V. The device features integrated short-circuit and thermal shutdown protection. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.
