HEERMICRDatasheet (PDF)

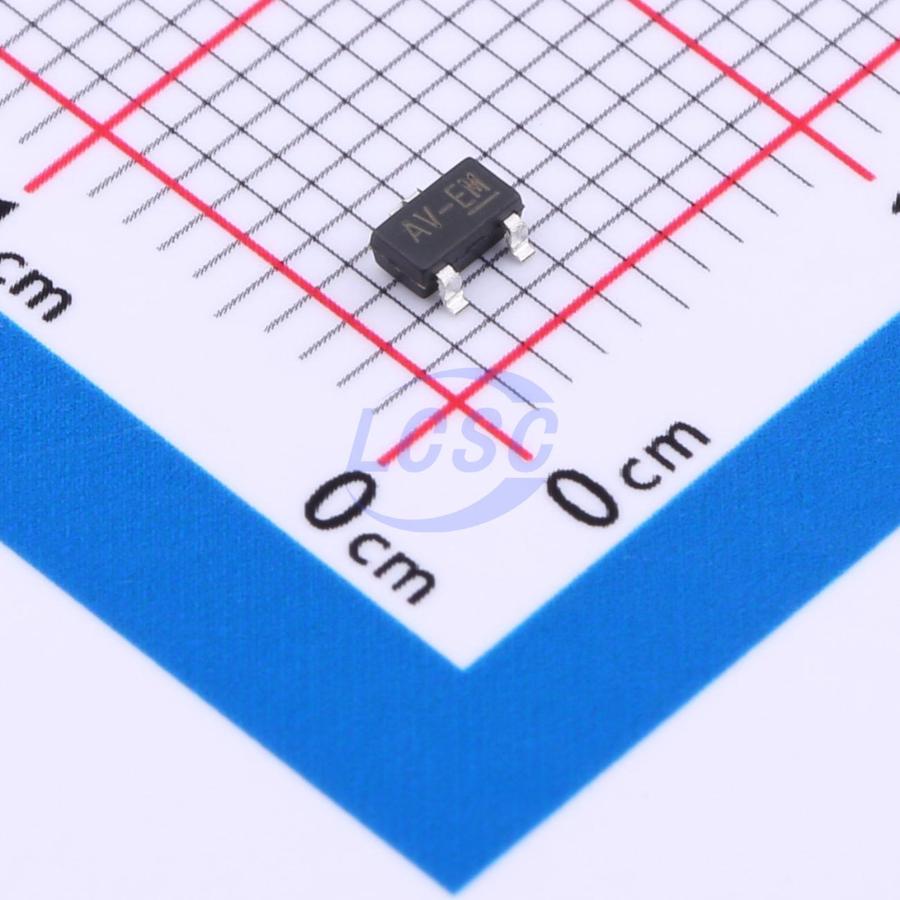

HE2280A50MR
5V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS CompliantActive
80V 150mA Low Power LDO
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE2280A50MR
- Store part #
- C5123372
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,955 in stock
#C5123372
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.27 | ₹151.35 |
| 50+ | ₹23.71 | ₹1,185.50 |
| 150+ | ₹20.89 | ₹3,133.50 |
| 500+ | ₹17.37 | ₹8,685.00 |
| 3,000+ | ₹15.55 | ₹46,650.00 |
| 6,000+ | ₹14.61 | ₹87,660.00 |
5 × ₹30.27
₹151.35
excl. GST
₹178.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HE2280A50MR
₹151.35 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The HE2280 series is a high voltage, ultralow-power, low dropout voltage regulator. The device can deliver 150mA output current with a dropout voltage of 700mV and allows an input voltage as high as 80V. The typical quiescent current is only 2μA. The device is available in fixed output voltages of 3.3, and 5.0V. The device features integrated short-circuit and thermal shutdown protection. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.
Applications
- Portable, Battery Powered Equipment
- Battery-powered equipment Weighting Scales
- Smoke detector and sensor
- Car Audio/Video Equipment
- Home Automation
Key features
- Low Power Consumption: 2μA (Typ)
- Maximum Output Current: 150mA
- Small Dropout Voltage 700mV@100mA (Vout=3.3V)
- High Input Voltage: Up to 80V
- High Accurate: HE2280(A) ±1% Output Voltage
- RoHS Compliant and Lead (Pb) Free
- Good Transient Response
- Integrated Short-Circuit Protection
- Over-Temperature Protection
- Output Current Limit
- Stable with Ceramic Capacitor
- Support Fixed Output Voltage 3.3 and 5.0V
- Available Package SOT23-3 \ SOT89-3
