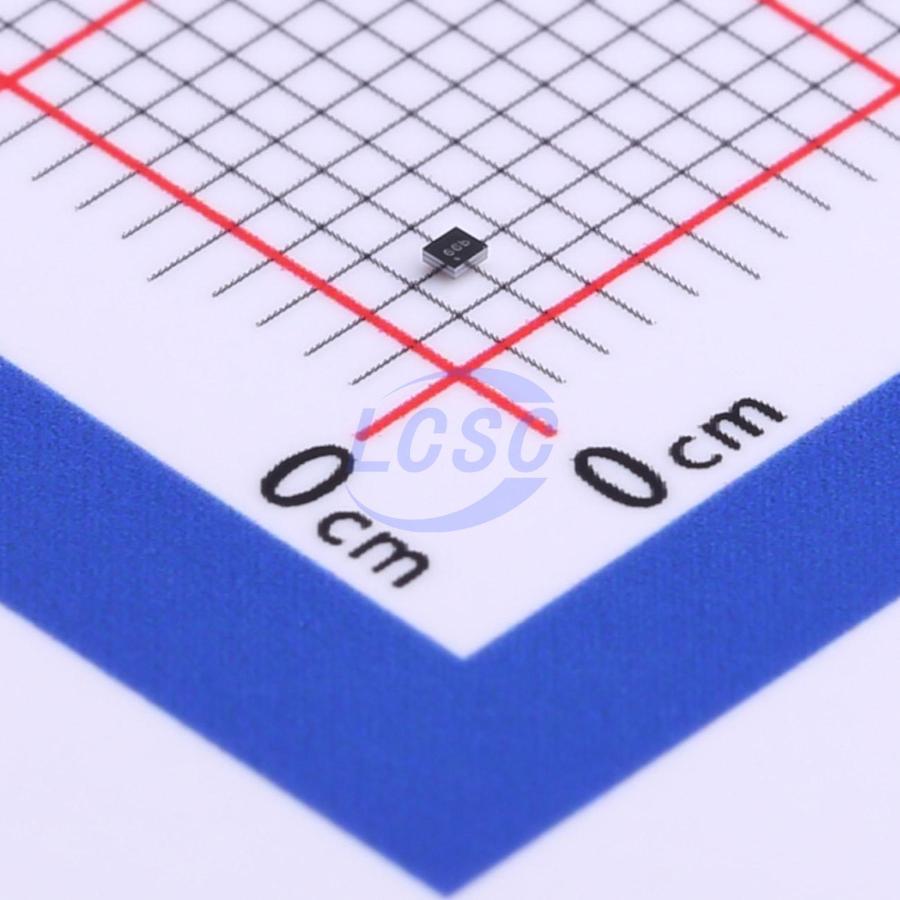

HE24C64WLCSPD
64Kbit 1MHz I2C WLCSP Memory
64K-bit Two-Wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,230 in stock
#C688941
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.69 | ₹68.45 |
| 50+ | ₹13.42 | ₹671.00 |
| 150+ | ₹13.22 | ₹1,983.00 |
| 500+ | ₹13.03 | ₹6,515.00 |
5 × ₹13.69
₹68.45
excl. GST
₹80.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HE24C64WLCSPD
₹68.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
The HE24C64 provides 65536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 8196 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The HE24C64 offer an additional page， named the identification Page（32bytes）.The identification page can be used to store sensitive application parameters which can be（later）permanently locked in Read-only mode.
Key features
- Wide Voltage Operation
- VCC = 1.7V to 5.5V
- Operating Ambient Temperature: -40 ℃ to +85 ℃
- Internally Organized: 64K bits(8K bytes) of EEPROM
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Enhanced ESD/Latch-up protection
- HBM 8000V
- Bidirectional Data Transfer Protocol
- 1 MHz (2.5V), 400 kHz (1.7V), 100 kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 32-bytes Page Write Modes
- Additional Write lockable page
- Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms max) High-reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- 8-lead PDIP/SOP/TSSOP /UDFN and WLCSP4 Packages
