HEERMICRDatasheet (PDF)

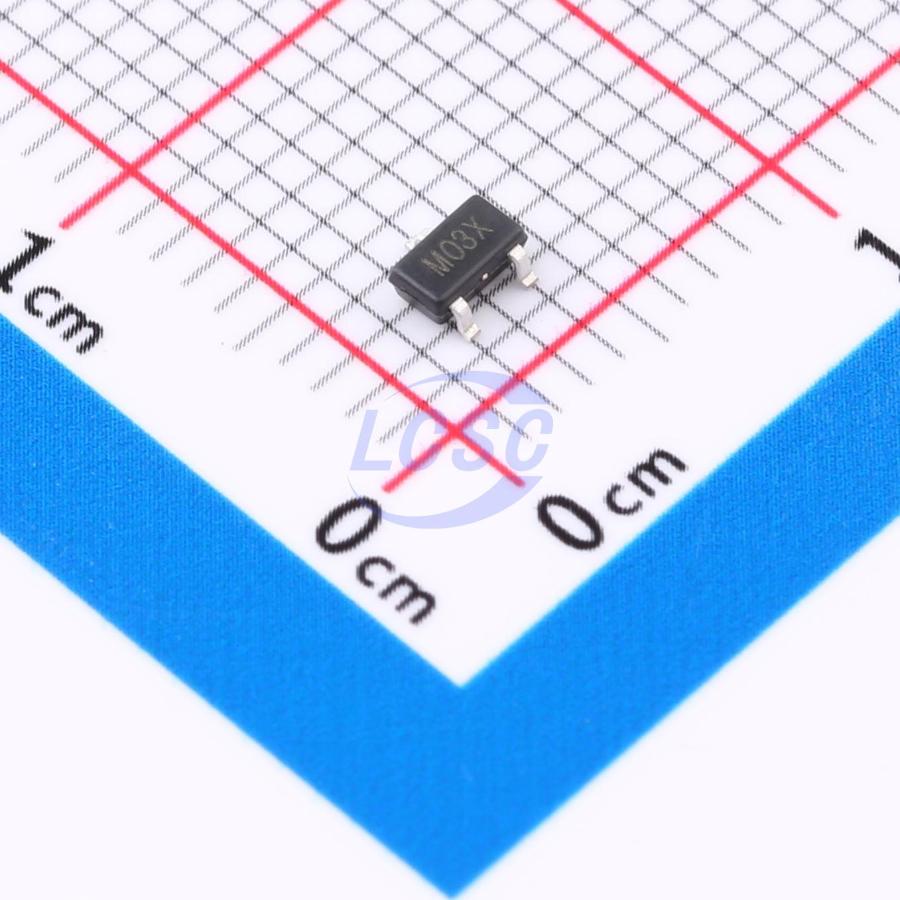

HE61CN2002MR
2V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Low Power Voltage Detector
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE61CN2002MR
- Store part #
- C49374762
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C49374762
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.96 | ₹99.60 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
| 9,000+ | ₹5.11 | ₹45,990.00 |
10 × ₹9.96
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HE61CN2002MR
₹99.60 for 10 + GST
Specifications
- Output Voltage
- 2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Output Configuration
- Positive
- Output Current
- 1mA
- Operating Voltage
- 10V
- Features
- Reset function
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.052 g
Overview
The HE61C series devices are a set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 0.9V to 5.0V. The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator, hysteresis circuit, and an output driver (CMOS inverter or NMOS open drain). CMOS technology ensures low power consumption. Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.
Applications
- Battery checkers
- Level selectors
- Power failure detectors
- Microcomputer reset
- Battery memory backup
- Non-volatile RAM signal storage protectors
Key features
- Low power consumption
- Low temperature coefficient
- Built-in hysteresis characteristic
- High input voltage (up to 8V)
- Output voltage accuracy: ±2%@VDET≥2.5mV ±50mV@VDET＜2.5mV
- SOT23-3 and SOT23 package
