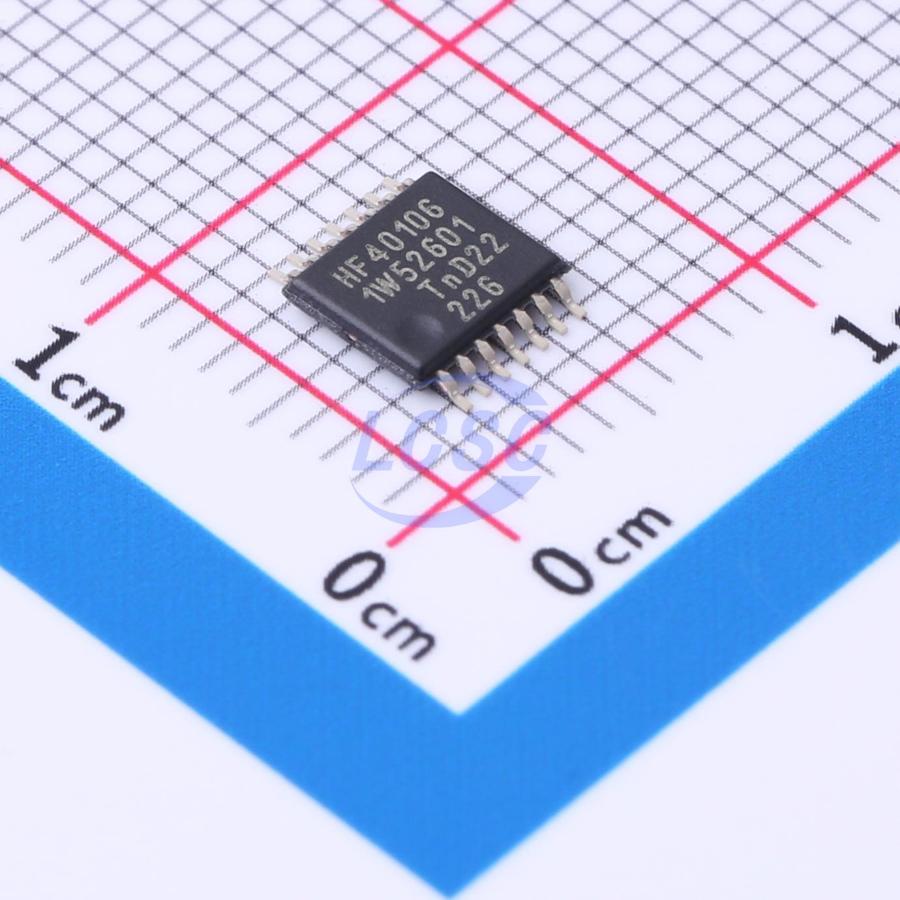

HEF40106BTT-Q100J
Schmitt trigger 3V~15V 60ns@15V,50pF 4uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF40106BTT-Q100J
- Store part #
- C545761
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C545761
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.41 | ₹65.41 |
| 10+ | ₹52.38 | ₹523.80 |
| 30+ | ₹46.73 | ₹1,401.90 |
| 100+ | ₹39.56 | ₹3,956.00 |
| 500+ | ₹34.99 | ₹17,495.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹65.41
₹65.41
excl. GST
₹77.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF40106BTT-Q100J
₹65.41 for 1 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 4000B
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 60ns@15V,50pF
- Features
- Noise suppression function
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
The HEF40106B is a hex inverter with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Schmitt trigger input discrimination
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection: MIL-STD-833, method 3015 exceeds 2 kV
- HBM JESD22-A114F exceeds 2 kV
- MM JESD22-A115-A exceeds 200 V, C = 200 pF, R = 0 Ω
- Complies with JEDEC standard JESD 13-B
Alternatives
Similar parts — check the datasheet before substituting.
