NexperiaDatasheet (PDF)
HEF4016BT,653
4 230Ω 3V~15V SOP-14 Analog Switches, Multiplexers, Demultiplexers RoHS
SOP-14ROHS3 CompliantActive

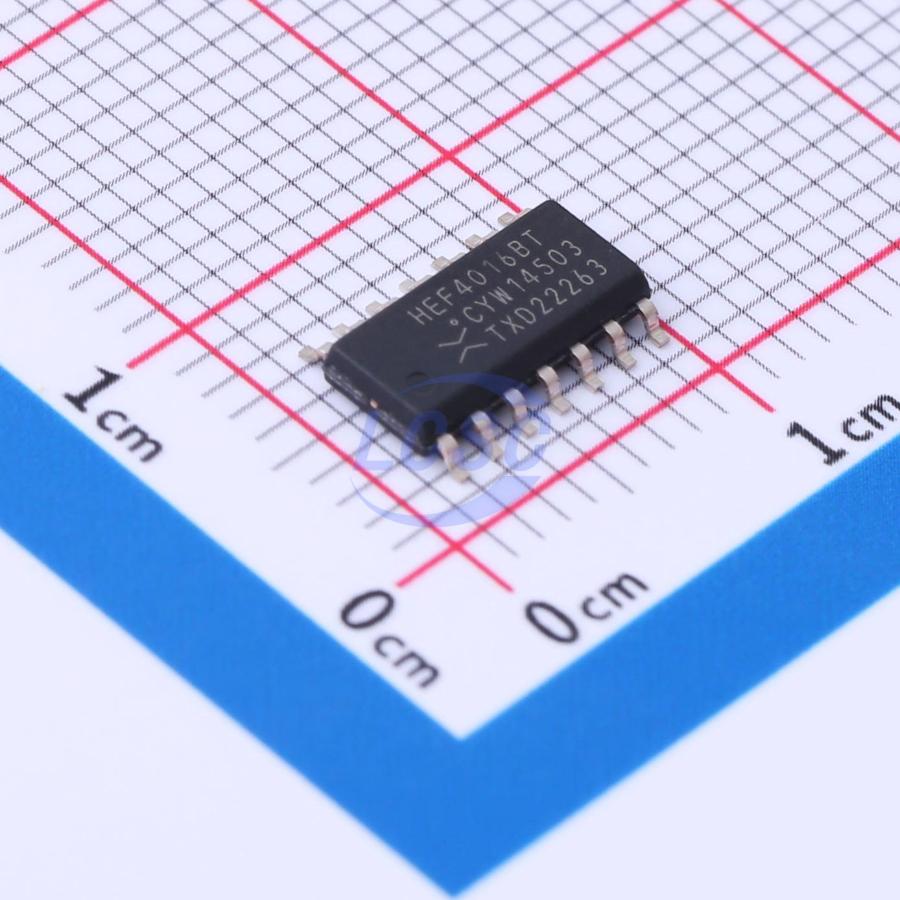

Quad single-pole single-throw analog switch
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4016BT,653
- Store part #
- C2442273
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C2442273
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.41 | ₹65.41 |
| 10+ | ₹50.63 | ₹506.30 |
| 30+ | ₹44.33 | ₹1,329.90 |
| 100+ | ₹36.51 | ₹3,651.00 |
| 500+ | ₹32.82 | ₹16,410.00 |
| 1,000+ | ₹30.87 | ₹30,870.00 |
1 × ₹65.41
₹65.41
excl. GST
₹77.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4016BT,653
₹65.41 for 1 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 4
- Ron
- 230Ω
- Voltage - Supply
- 3V~15V
- Propagation Delay
- 10ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The HEF4016B is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Applications
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
Key features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunmity
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Complies with JEDEC standard JESD 13 - B
- ESD protection: HBM JESD22 - A114F exceeds 2000 V
- MM JESD22 - A115 - B exceeds 200 V
- Specified from -40 °C to +85 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HEF4066BT,653#C6738Nexperia · SOIC-14 | Nexperia | SOIC-14 | 19,500 | ₹30.36 · 19,500 in stock | View |
 | HEF4066BT-Q100J#C551463Nexperia · SO-14 | Nexperia | SO-14 | 80 | ₹87.17 · 80 in stock | View |
 | 4066G-S14-R#C5310359UTC · SOP-14 | UTC | SOP-14 | 152 | ₹26.06 · 152 in stock | View |
 | CD4066BM-TD#C42421849TDSEMIC · SOP-14 | TDSEMIC | SOP-14 | 2,745 | ₹14.45 · 2,745 in stock | View |
| CD4066DM/TR#C42406218HGSEMI · SOP-14 | HGSEMI | SOP-14 | 4,980 | ₹11.96 · 4,980 in stock | View | |
