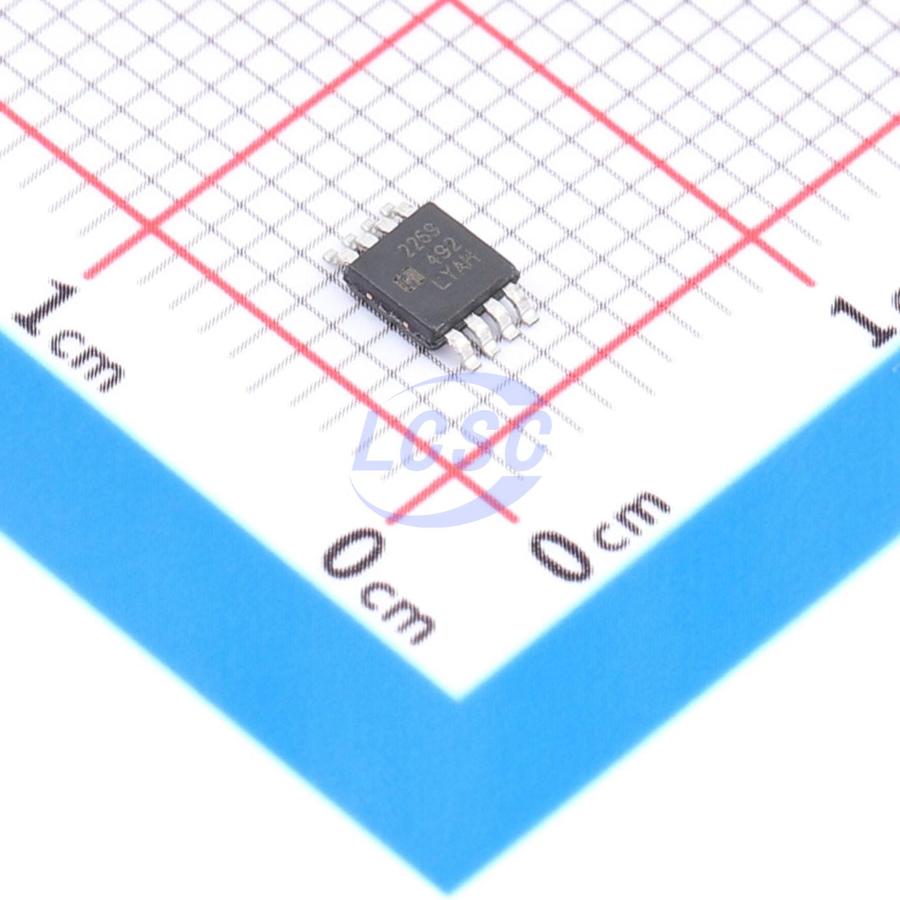

HG2269MM/TR

60kHz~70kHz 12V~23V Flyback MSOP-8 AC DC Converters, Offline Switchers

MSOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: HG2269MM/TR
Store part #: C54348657
Package / case: MSOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,995 in stock

#C54348657

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹27.97	₹139.85
50+	₹22.09	₹1,104.50
150+	₹19.58	₹2,937.00
500+	₹16.43	₹8,215.00
3,000+	₹15.04	₹45,120.00
6,000+	₹14.20	₹85,200.00

Quantity (min 5, multiples of 5)

5 × ₹27.97

₹139.85

excl. GST

₹165.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HG2269MM/TR

₹139.85 for 5 + GST

Specifications

Operating Temperature: -20℃~+125℃
Frequency - Switching: 60kHz~70kHz
Voltage - Supply: 12V~23V
Topology: Flyback
Features: Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 80%
Feedback System: Primary-side feedback
Working Mode: PWM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.262 g

Overview

The HG2269 integrates a highly integrated current-mode PWM control IC, optimized for high-performance, low standby power, and cost-effective offline flyback converter applications. During normal operation, the PWM switching frequency can be programmed via an external component and fine-tuned within a narrow range. Under no-load or light-load conditions, the IC operates in extended "Burst Mode" to minimize switching losses, achieving lower standby power consumption and higher conversion efficiency. The low VDD startup current and low operating current enable the HG2269 to achieve reliable power-on startup and low standby design. Consequently, high-value resistors can be used in the startup circuit to minimize standby power dissipation. Internal slope compensation improves large-signal system stability and reduces subharmonic oscillation that may occur at high PWM duty cycle outputs. Leading-edge blanking on the current sense input eliminates signal glitches caused by snubber diode reverse recovery, helping to reduce the number of external components and system cost in the application. The HG2269 provides comprehensive protection features with automatic self-recovery, including cycle-by-cycle OCP, OLP, VDD UVLO, OTP, and OVP. The gate drive output is clamped at 18V to protect the power MOSFET. In the HG2269, the OCP threshold slope is internally optimized to achieve constant output power limiting across the universal AC input range. Excellent EMI performance is achieved through internal frequency jitter and soft-switching control of the totem-pole gate drive output. The design minimizes tonal energy below 22KHz and eliminates audio noise. The HG2269 is available in SOP-8, MSOP-8, and DIP-8 packages.

Applications

Offline AC/DC flyback converter for:
AC/DC adapters
Set-top box power supplies
Auxiliary power supplies
Open-frame switching power supplies
Battery chargers

Key features

Extended burst mode control for improved efficiency and minimal standby power design
Soft-start at power-up to reduce MOSFET stress
Audio-noise-free operation
Externally programmable PWM switching frequency
Low VDD startup and operating current
Frequency dithering for EMI minimization
Leading-edge blanking for current sensing
Internal synchronized slope compensation
Low VIN/VDD startup current (6.5uA) and low operating current (2.0mA)
Comprehensive protection with auto-recovery - VDD UVLO with hysteresis
Cycle-by-cycle overcurrent protection
Overload protection (OLP)
Over-temperature protection (OTP)
VDD overvoltage protection (OVP)
Available in DIP-8, SOP-8, MSOP-8 packages
