Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,975 in stock
#C53200139
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.61 | ₹53.05 |
| 50+ | ₹8.41 | ₹420.50 |
| 150+ | ₹7.33 | ₹1,099.50 |
| 500+ | ₹6.51 | ₹3,255.00 |
| 2,500+ | ₹5.85 | ₹14,625.00 |
| 5,000+ | ₹5.53 | ₹27,650.00 |
5 × ₹10.61
₹53.05
excl. GST
₹62.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

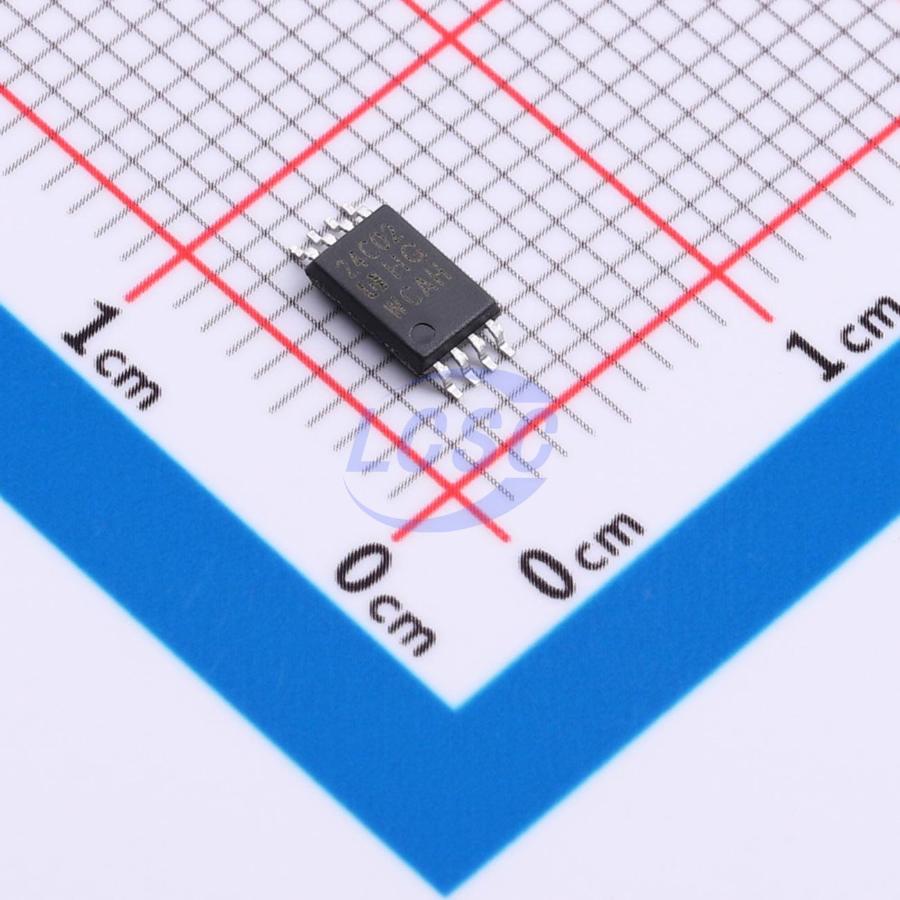

HG24C02MT/TR
₹53.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.166 g
Overview
HG24C02 is an I²C-compatible serial EEPROM device. It contains a 2K-bit (256-byte) memory array organized in 8-byte pages. The device is suitable for electronic systems requiring non-volatile data storage.
Key features
- Single supply voltage with high-speed mode
- Supports 400kHz/1MHz clock at 1.7V to 5.5V
- Low-power CMOS technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.8mA (400kHz, typical)
- Schmitt trigger inputs for noise filtering
- Sequential and random read capability
- Page write mode with partial page write support
- Write protection for entire memory array
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- ESD HBM: 4 kV
- Latch-up immunity: ±200mA (25℃)
- Packages: DIP8, SOP8, TSSOP8, DFN-8 3×3, MSOP8, SOT-23-5, DFN-8 2×2
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C02MT/TR-HG#C53200138HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,285 | ₹10.61 · 4,285 in stock | View |
