2,220 in stock
#C49270262
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.38 | ₹86.90 |
| 50+ | ₹13.75 | ₹687.50 |
| 150+ | ₹11.92 | ₹1,788.00 |
| 500+ | ₹10.56 | ₹5,280.00 |
| 2,500+ | ₹9.46 | ₹23,650.00 |
| 5,000+ | ₹8.92 | ₹44,600.00 |
5 × ₹17.38
₹86.90
excl. GST
₹102.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

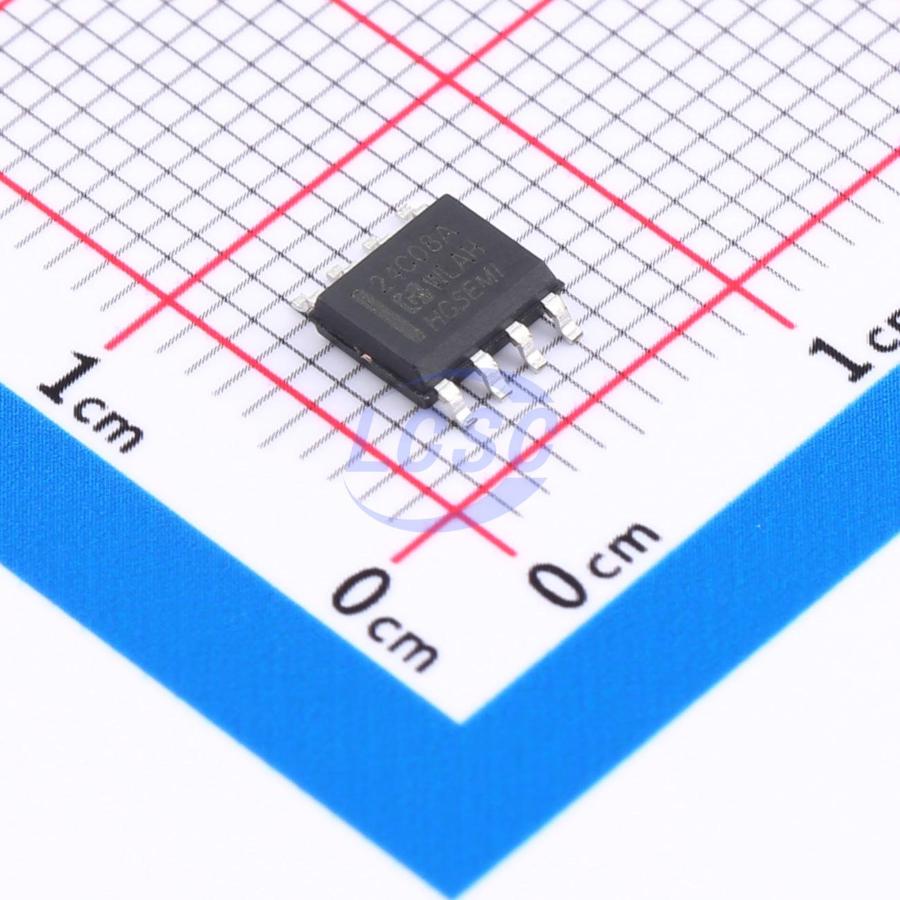

HG24C08AM/TR
₹86.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3.3ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.272 g
Overview
The device provides 8192-bit serial EEPROM organized as 1024 words of 8 bits each. It is optimized for industrial and commercial applications where low power and low voltage operation are critical.
Key features
- Compatible with all I²C bi-directional data transfer protocols
- Memory array: 8K-bit (1024×8) EEPROM, page size: 16 bytes
- Single supply voltage, high-speed operation: 1 MHz
- Random and sequential read modes
- Write: byte write completes within 3 ms, page write completes within 3 ms, partial page write supported
- Write protect pin for hardware data protection
- Schmitt trigger, filtered inputs for noise suppression
- High reliability: endurance: 1 million write cycles, data retention: 100 years
- 8-pin DIP/SOP/TSSOP/SOT-23-5 and DFN packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C08M/TR#C2688459HGSEMI · SOIC-8 | HGSEMI | SOIC-8 | 265 | ₹11.22 · 265 in stock | View |
 | HG24LC08M/TR#C3007880HGSEMI · SOP-8 | HGSEMI | SOP-8 | 630 | ₹14.57 · 630 in stock | View |
 | AT24LC08M/TR#C3007889HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,075 | ₹13.77 · 2,075 in stock | View |
 | AT24C08M/TR#C2688458HGSEMI · SOP-8 | HGSEMI | SOP-8 | 25 | ₹14.59 · 25 in stock | View |
 | HG24C08CM/TR#C22396892HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,815 | ₹11.03 · 1,815 in stock | View |
