Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,635 in stock
#C22461602
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.26 | ₹81.30 |
| 50+ | ₹12.86 | ₹643.00 |
| 150+ | ₹11.15 | ₹1,672.50 |
| 500+ | ₹9.88 | ₹4,940.00 |
| 3,000+ | ₹8.85 | ₹26,550.00 |
| 6,000+ | ₹8.35 | ₹50,100.00 |
5 × ₹16.26
₹81.30
excl. GST
₹95.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

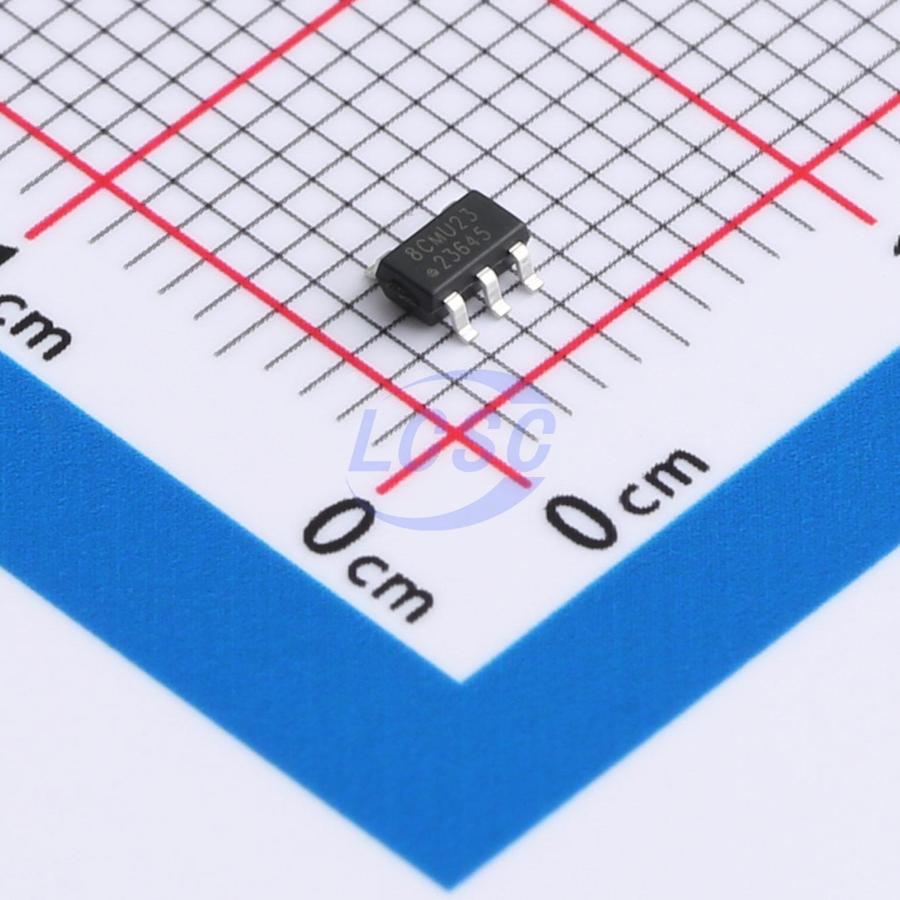

HG24C08AM5/TR
₹81.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;1.5mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 4ms
- Standby Supply Current
- 1.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
The HG24C08A provides 8192 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all I2C bidirectional data transfer protoco
- Memory array: 8K bits (1024 X 8) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed: 1 MHz
- Random and sequential Read modes
- Write:
- Byte Write within 3 ms
- Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- 8-lead DIP/SOP/TSSOP/SOT-23-5 and DFN package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C08M5/TR#C7432067HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,795 | ₹14.51 · 2,795 in stock | View |
 | AT24C08M5/TR#C7432355HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 3,630 | ₹14.92 · 3,630 in stock | View |
 | HG24C08CM5/TR#C22396890HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,305 | ₹14.51 · 2,305 in stock | View |
 | AT24C08CM5/TR#C22396891HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 1,965 | ₹14.29 · 1,965 in stock | View |
