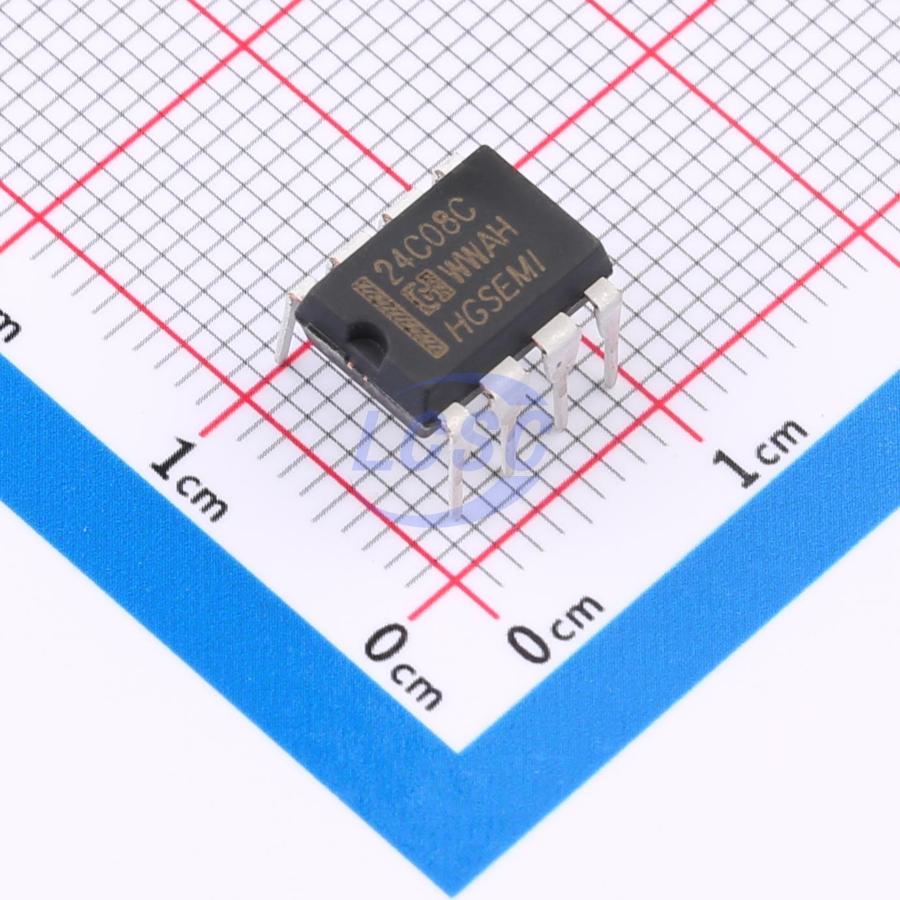

HG24C08CN

The HG24C08C is an 8-Kbit I²C-compatible serial EEPROM device. The device is designed to operate in a supply voltage range of 1.7V to 5.5V, with a maximum of 1MHz transfer rate, over an operating temperature range of -40℃ to +105℃. The device incorporates a Write Protection pin used for hardware Write Protection on the whole memory array. The device also offers a Software Write Protection feature for users to write protect the whole memory array. The memory array is organized as 64 pages of 16 bytes each, totaling 1024 * 8 bits. The device offers an additional 16-byte Identification Page for users to store sensitive application parameters. This page can be permanently locked in Read-only mode after the data is written into the Identification Page. The device also offers a separate memory block (in Read-only mode) containing a factory programmed 128-bit Unique ID and can be accessed to by sending a specific Read command. The HG24C08C is delivered in lead-free green packages: DIP, SOP, MSOP, TSSOP, DFN and SOT.

Key features

• Supply Voltage Range: 1.7V to 5.5V
• 2-wire Serial Interface I²C Compatible - 400 kHz and High Speed 1MHz Transfer Rate Compatibility
• Byte and Page (up to 16 Bytes) Write Mode - Partial Page Write Allowed
• Self-timed Write Cycle (3ms Maximum)
• Additional 16-byte Write Lockable Page and 128-bit Unique ID
• Hardware and Software Write Protection on the Whole Memory Array
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• High Reliability - Endurance: 2,000,000 Write Cycles - Data Retention: 200 Years - ESD Protection (Human Body Model): 4000V
• Low Operating Current - Write Current: 0.5mA (Maximum) - Read Current: 0.2mA (Maximum) - Standby Current: 1μA (Maximum)
• Operating Temperature Range: -40℃ to +105℃
• Green Packaging Options (RoHS Compliant, Pb/Halogen-free) - DIP-8, SOP-8, MSOP-8, TSSOP-8, DFN-8, SOT23-5
