Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C53200136
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.65 | ₹73.25 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.19 | ₹1,528.50 |
| 500+ | ₹9.06 | ₹4,530.00 |
| 2,500+ | ₹8.18 | ₹20,450.00 |
| 5,000+ | ₹7.73 | ₹38,650.00 |
5 × ₹14.65
₹73.25
excl. GST
₹86.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

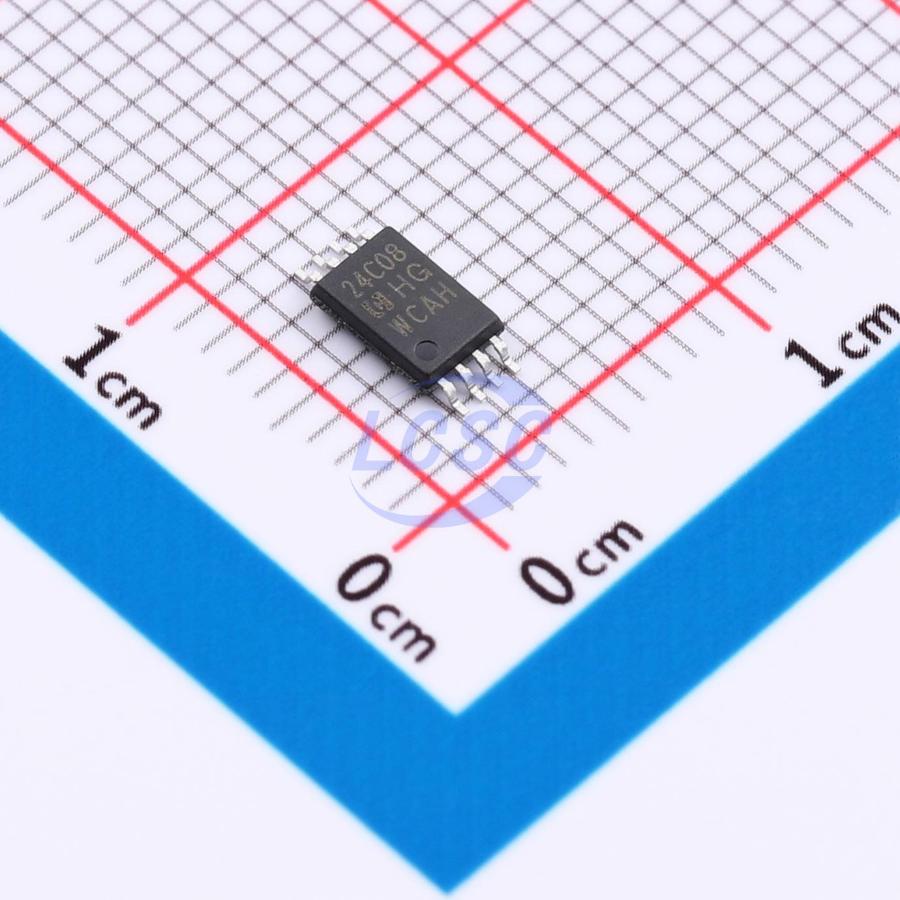

HG24C08MT/TR
₹73.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Built-in power-on reset (POR);Hardware write protection function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
HG24C08/HG24C16 is an I²C-compatible serial EEPROM device. It features a memory array of 8K-bit (1K-byte) or 16K-bit (2K-byte) capacity, with a page size of 16 bytes.
Key features
- Single supply voltage with high-speed mode
- Minimum operating voltage down to 1.7V
- 400kHz/1MHz clock frequency support over 1.7V to 5.5V voltage range
- Low-power CMOS process technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.8mA (400kHz, typical)
- Schmitt trigger, filtered inputs for noise suppression
- Sequential read and random read support
- Page write mode with partial page write capability
- Write protection for entire memory array
- Additional lockable pages
- Self-timed write cycle (5ms max)
- High reliability: 1 million write cycle endurance, 100-year data retention, 4kV HBM ESD protection, latch-up immunity ±200mA (25°C)
- Packages: DIP-8, SOP-8, TSSOP-8, SOT-23-5, DFN-8, MSOP-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C08MT/TR-HG#C53200137HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,945 | ₹14.65 · 4,945 in stock | View |
