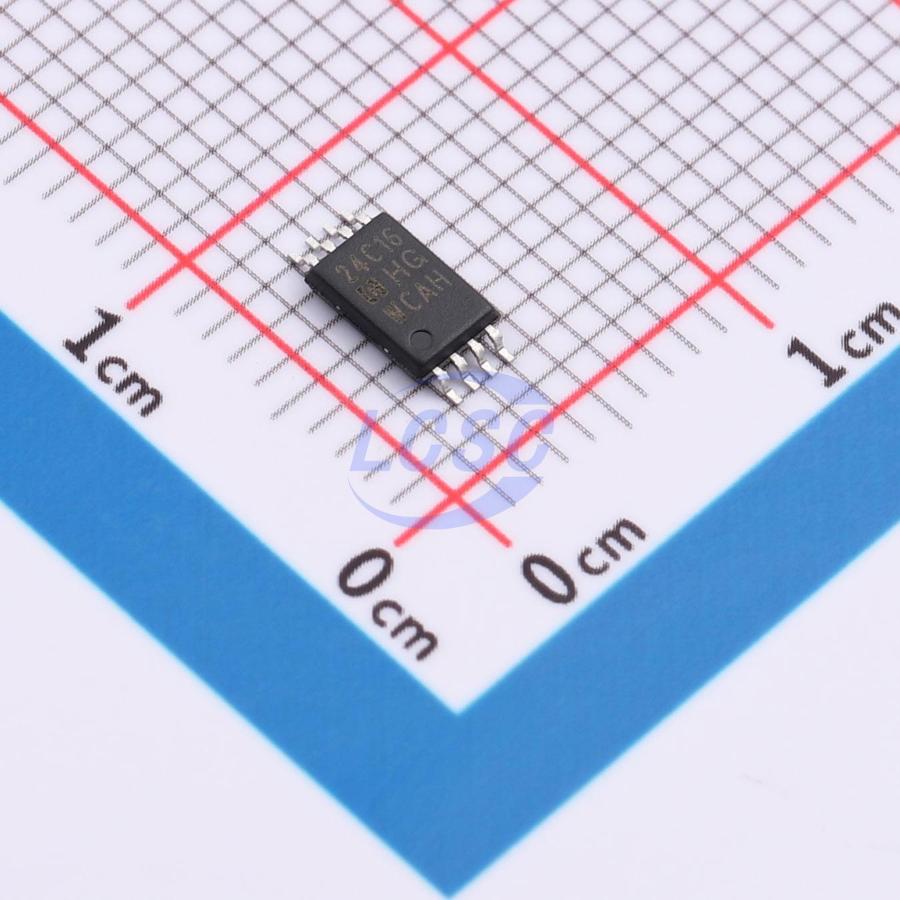

HG24C16MT/TR
₹103.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 400kHz;1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
HG24C08/HG24C16 is an I²C-compatible serial EEPROM device. It features a memory array of 8K-bit (1K-byte) or 16K-bit (2K-byte) capacity, with a page size of 16 bytes.
Key features
- Single supply voltage with high-speed mode
- Minimum operating voltage down to 1.7V
- 400kHz/1MHz clock frequency support over 1.7V to 5.5V voltage range
- Low-power CMOS process technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.8mA (400kHz, typical)
- Schmitt trigger, filtered inputs for noise suppression
- Sequential read and random read support
- Page write mode with partial page write capability
- Write protection for entire memory array
- Additional lockable pages
- Self-timed write cycle (5ms max)
- High reliability: 1 million write cycle endurance, 100-year data retention, 4kV HBM ESD protection, latch-up immunity ±200mA (25°C)
- Packages: DIP-8, SOP-8, TSSOP-8, SOT-23-5, DFN-8, MSOP-8
