Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,525 in stock
#C54140480
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.28 | ₹86.40 |
| 50+ | ₹13.72 | ₹686.00 |
| 150+ | ₹11.93 | ₹1,789.50 |
| 500+ | ₹10.61 | ₹5,305.00 |
| 3,000+ | ₹9.54 | ₹28,620.00 |
| 6,000+ | ₹9.00 | ₹54,000.00 |
5 × ₹17.28
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

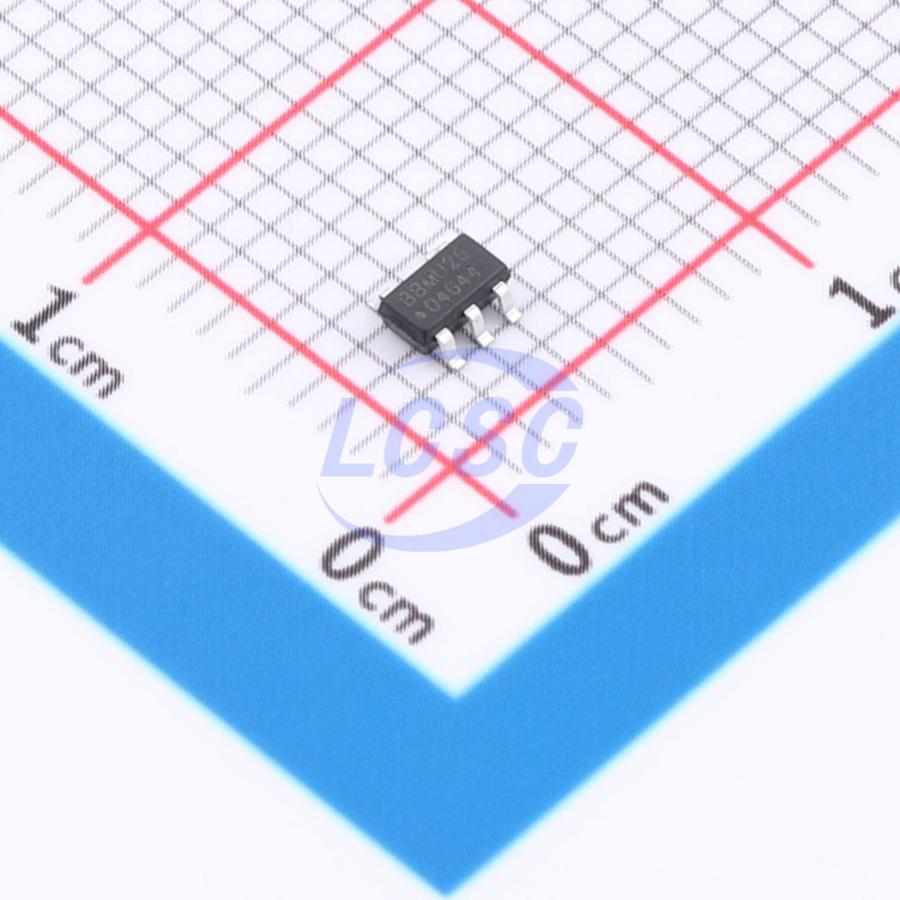

HG24C32AM5/TR
₹86.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us;0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.081 g
Overview
The HG24C32A / HG24C64A provides 32,768/65,536 bits of serial EEPROM, organized as 4,096/8,192 words of 8 bits each. The device is optimized for a wide range of industrial and commercial applications where low power consumption and low voltage operation are essential. The HG24C32A / HG24C64A is available in space-saving 8-pin DIP, 8-pin SOP, and 8-pin MSOP packages and is accessible via a two-wire serial interface.
Key features
- Wide voltage operation
- VCC = 1.8V ~ 5.5V
- Operating temperature: -40°C ~ +85°C
- Internal organization:
- HG24C032A, 4096 × 8 (32K bits)
- HG24C064A, 8192 × 8 (64K bits)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filter
- Bidirectional data transfer protocol
- 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) compatible
- Write protection pin for hardware data protection
- 32-byte page (32K) write mode
- Partial page write supported
- Self-timed write cycle (5 ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Die sales: wafer form, waffle pack
- DIP-8
- SOP-8
- TSOP-8
- MSOP-8
- SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C32M5/TR#C7432069HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 1,015 | ₹17.68 · 1,015 in stock | View |
