HGSEMI

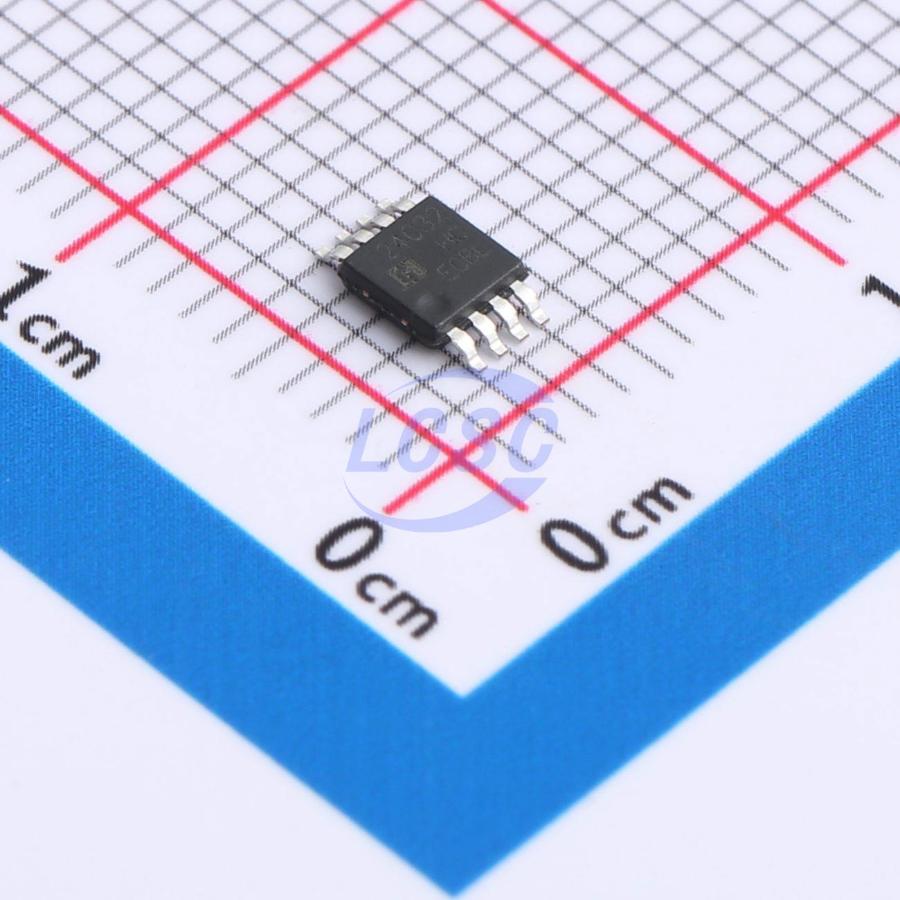

HG24C32MM/TR
32Kbit 1MHz I2C MSOP-8 Memory
MSOP-8RoHSActive
Serial Electrically Erasable Programmable Read-Only Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,235 in stock
#C5310845
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.74 | ₹83.70 |
| 50+ | ₹13.39 | ₹669.50 |
| 150+ | ₹11.70 | ₹1,755.00 |
| 500+ | ₹10.45 | ₹5,225.00 |
| 3,000+ | ₹9.45 | ₹28,350.00 |
| 6,000+ | ₹8.94 | ₹53,640.00 |
5 × ₹16.74
₹83.70
excl. GST
₹98.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HG24C32MM/TR
₹83.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 3.45us;0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
HG24C32 is an I²C-compatible serial EEPROM device containing a 32 Kbit (4 Kbyte) memory array organized as 32 bytes per page.
Key features
- Single supply voltage and high-speed mode
- Minimum operating voltage down to 1.7V
- Clock frequency 400kHz/1MHz from 1.7V to 5.5V
- Low-power CMOS technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.8mA (400kHz, typical)
- Schmitt trigger filtered inputs for noise suppression
- Sequential and random read operations
- 32-byte page write mode with partial page write support
- Write protection for entire memory array
- Additional writable lockable page
- Additional 128-bit serial number
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1 million write cycles
- Data retention: 100 years
- ESD (HBM): 4 kV
- Latch-up immunity: ±200mA (25°C)
- Packages: DIP8, SOP8, MSOP8, TSSOP8, DFN8, SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HG24C32AMM/TR#C53468200HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,785 | ₹17.29 · 2,785 in stock | View | |
