4,500 in stock
#C53200141
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.80 | ₹104.00 |
| 50+ | ₹16.42 | ₹821.00 |
| 150+ | ₹14.54 | ₹2,181.00 |
| 500+ | ₹12.20 | ₹6,100.00 |
| 2,500+ | ₹11.17 | ₹27,925.00 |
| 5,000+ | ₹10.53 | ₹52,650.00 |
5 × ₹20.80
₹104.00
excl. GST
₹122.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

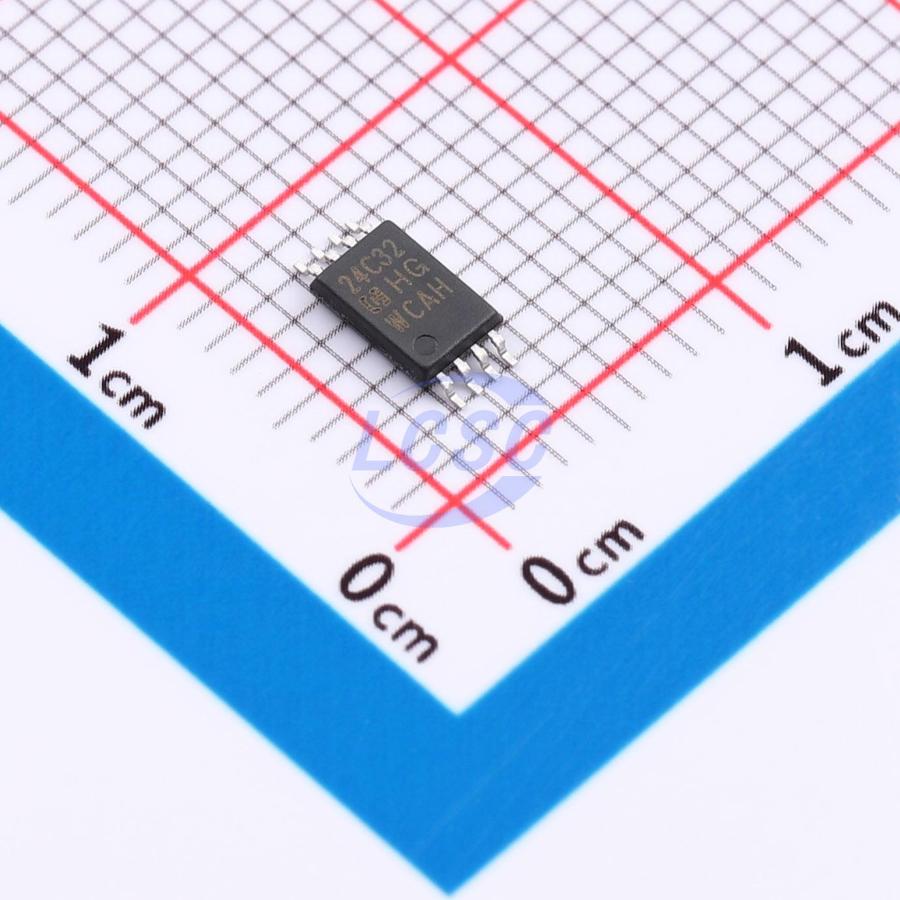

HG24C32MT/TR
₹104.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.166 g
Overview
HG24C32 is an I²C-compatible serial EEPROM device. It contains a 32 Kb (4 KB) memory array, organized as 32 bytes per page.
Key features
- Single supply voltage and high-speed mode
- Minimum operating voltage down to 1.7V
- 400kHz/1MHz clock support over 1.7V to 5.5V range
- Low-power CMOS technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.8mA (400kHz, typical)
- Schmitt trigger with filtered inputs for noise suppression
- Sequential and random read capabilities
- 32-byte page write mode with partial page write support
- Write protection for entire memory array
- Additional writeable lockable page
- Additional 128-bit serial number
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1 million write cycles
- Data retention: 100 years
- ESD (HBM): 4 kV
- Latch-up immunity: ±200mA (25°C)
- Packages: DIP8, SOP8, MSOP8, TSSOP8, DFN8, SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C32MT/TR-HG#C53200140HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,690 | ₹20.80 · 4,690 in stock | View |
 | AT24C32AMT/TR-HG#C53468201HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,085 | ₹20.80 · 4,085 in stock | View |
 | HG24C32AMT/TR#C53468204HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,985 | ₹20.80 · 4,985 in stock | View |
