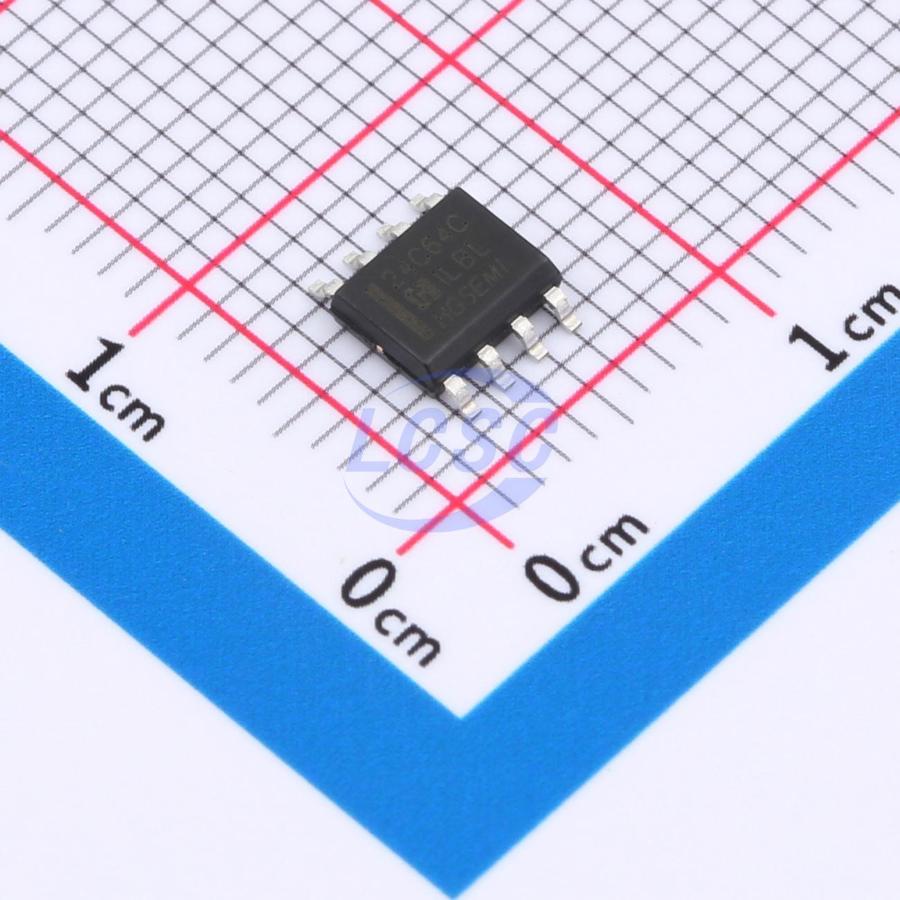

HG24C64CM/TR

The HG24C64C is a 64-Kbit I²C-compatible serial EEPROM (Electrically Erasable Programmable Memory) device. The device is designed to operate in a supply voltage range of 1.7V to 5.5V, with a maximum of 1MHz transfer rate. The operating temperature range is from -40℃ to +105℃. The device incorporates a Write Protection pin used for hardware Write Protection on the whole memory array. The serial EEPROM memory is organized as 256 pages of 32 bytes each, totaling 8192 * 8 bits. The HG24C64C offers an additional 32-byte Identification Page for users to store sensitive application parameters. This page can be permanently locked in Read-only mode after the application data is written into the Identification Page. The HG24C64C also offers a separate memory block containing a factory programmed 128-bit Unique ID. This block is in Read-only mode and can be accessed to by sending a specific Read command. The HG24C64C is delivered in lead-free green packages: SOP, MSOP, TSSOP, DFN and SOT.

Key features

• Supply Voltage: 1.7V to 5.5V
• 2-wire Serial Interface I²C Compatible — 400 kHz and High Speed 1MHz Transfer Rate Compatibility
• Byte and Page (up to 32 Bytes) Write Mode — Partial Page Write Allowed
• Self-timed Write Cycle (3ms Maximum)
• Hardware Write Protection on the Whole Memory Array
• Additional 32-byte Write Lockable Page and 128-bit Unique ID
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• High Reliability — Endurance: 2,000,000 Write Cycles — Data Retention: 200 Years — ESD Protection (Human Body Model): 6000V
• Low Operating Current — Write Current: 0.5mA (Maximum) — Read Current: 0.5mA (Maximum) — Standby Current: 1μA (Maximum)
• Operating Temperature Range: -40℃ to +105℃
• Green Packaging Options (RoHS Compliant, Pb/Halogen-free) — SOP-8, TSSOP-8, MSOP-8, DFN-8, SOT-23-5
