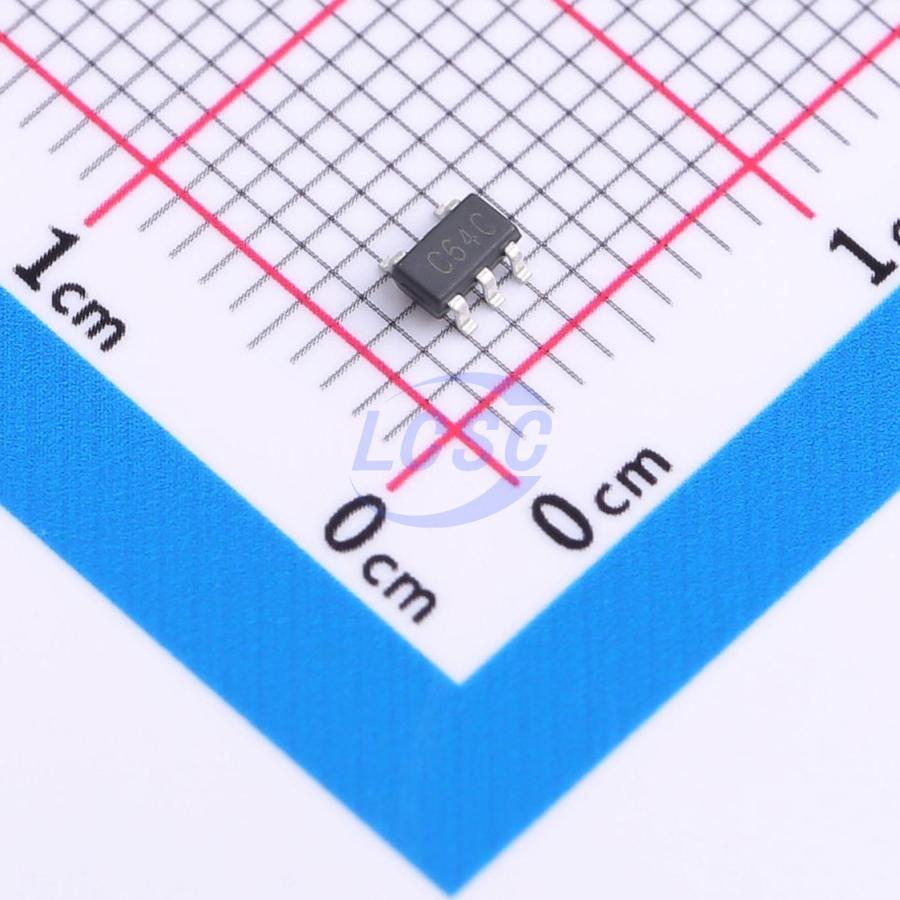

HG24C64CM5/TR
64Kbit 1MHz I2C SOT-23-5 Memory
64-Kbit I2C-compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,360 in stock
#C41380753
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.25 | ₹106.25 |
| 50+ | ₹16.78 | ₹839.00 |
| 150+ | ₹14.86 | ₹2,229.00 |
| 500+ | ₹12.46 | ₹6,230.00 |
| 3,000+ | ₹11.39 | ₹34,170.00 |
| 6,000+ | ₹10.76 | ₹64,560.00 |
5 × ₹21.25
₹106.25
excl. GST
₹125.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HG24C64CM5/TR
₹106.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;0.5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 2,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.079 g
Overview
The HG24C64C is a 64-Kbit I2C-compatible serial EEPROM (Electrically Erasable Programmable Memory) device. The device is designed to operate in a supply voltage range of 1.7V to 5.5V, with a maximum of 1MHz transfer rate. The operating temperature range is from -40℃ to +105℃. The device incorporates a Write Protection pin used for hardware Write Protection on the whole memory array. The serial EEPROM memory is organized as 256 pages of 32 bytes each, totaling 8192*8 bits. The HG24C64C offers an additional 32-byte Identification Page for users to store sensitive application parameters. This page can be permanently locked in Read-only mode after the application data is written into the Identification Page. The HG24C64C also offers a separate memory block containing a factory programmed 128-bit Unique ID. This block is in Read-only mode and can be accessed to by sending a specific Read command. The HG24C64C is delivered in lead-free green packages: SOP, MSOP, TSSOP, DFN and SOT.
Key features
- Supply Voltage: 1.7V to 5.5V
- 2-wire Serial Interface I2C Compatible — 400 kHz and High Speed 1MHz Transfer Rate Compatibility Byte and Page (up to 32 Bytes) Write Mode — Partial Page Write Allowed
- Self-timed Write Cycle (3ms Maximum)
- Hardware Write Protection on the Whole Memory Array
- Additional 32-byte Write Lockable Page and 128-bit Unique ID
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High Reliability — Endurance: 2,000,000 Write Cycles — Data Retention: 200 Years — ESD Protection (Human Body Model): 6000V Low Operating Current — Write Current: 0.5mA (Maximum) — Read Current: 0.5mA (Maximum) — Standby Current: 1μA (Maximum)
- Operating Temperature Range: -40℃ to +105℃
- Green Packaging Options (RoHS Compliant, Pb/Halogen-free) — SOP-8, TSSOP-8,MSOP-8, DFN-8, SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C64M5/TR#C51953513HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,625 | ₹15.21 · 2,625 in stock | View |
