HGSEMIDatasheet (PDF)

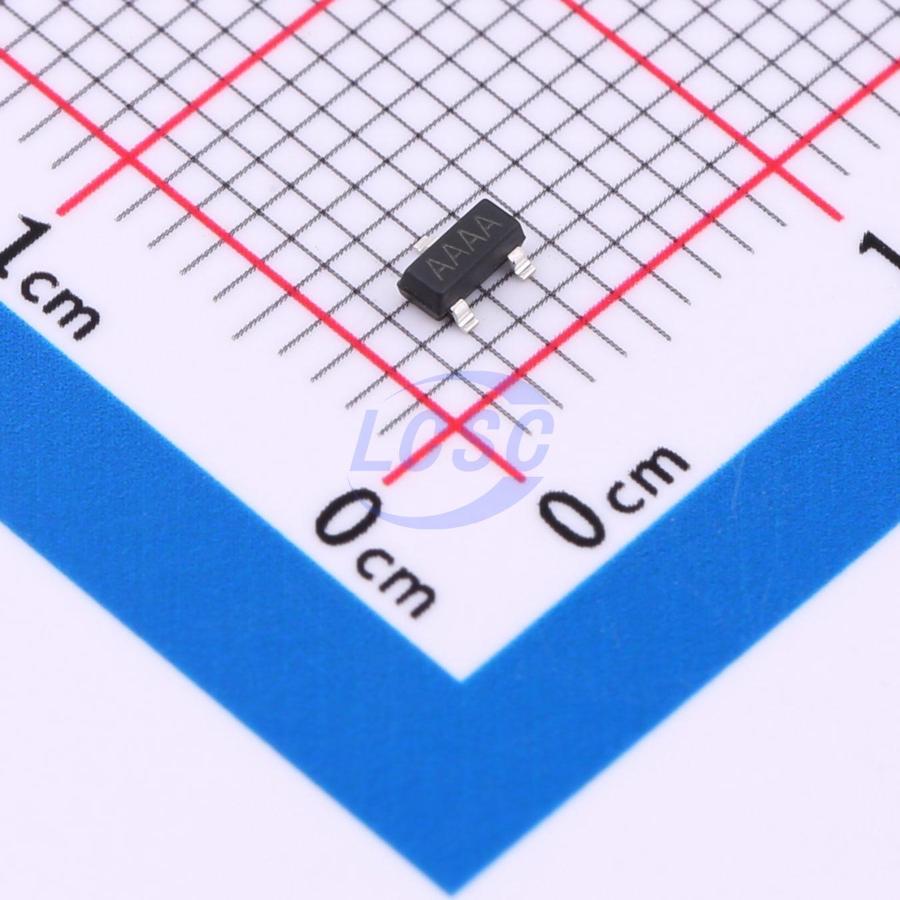

HG809LM3-4.63/TR
Supervisor 1 Channel SOT-23
SOT-23RoHSActive
Low Voltage Reset Detector
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG809LM3-4.63/TR
- Store part #
- C7432261
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C7432261
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.65 | ₹56.50 |
| 100+ | ₹4.47 | ₹447.00 |
| 300+ | ₹3.88 | ₹1,164.00 |
| 3,000+ | ₹3.44 | ₹10,320.00 |
| 6,000+ | ₹3.08 | ₹18,480.00 |
| 9,000+ | ₹2.90 | ₹26,100.00 |
10 × ₹5.65
₹56.50
excl. GST
₹66.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HG809LM3-4.63/TR
₹56.50 for 10 + GST
Specifications
- Reset Timeout
- 200ms
- Operating Temperature
- -50℃~+95℃
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 5.5uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The HG809X series are three-port low-voltage reset detection monitors that provide a reset monitoring signal to the host processor. This series of reset detection monitors can monitor fixed voltages from 1.0V to 5.0V, with simple application requiring no external components.
Applications
- Battery-powered devices
- Power failure detectors
- Computers and microprocessors
- Non-volatile RAM signal storage protectors
- Critical MP power supply monitoring
- Embedded systems
Key features
- Low power consumption: 5.5μA (typical)
- Wide operating voltage range: 1 - 6.0V
- VCC transient immunity
- No external components required
- Built-in reset delay time: 200ms (typical)
- High-accuracy reset voltage: ±2.5%
- Compact package: SOT-23
