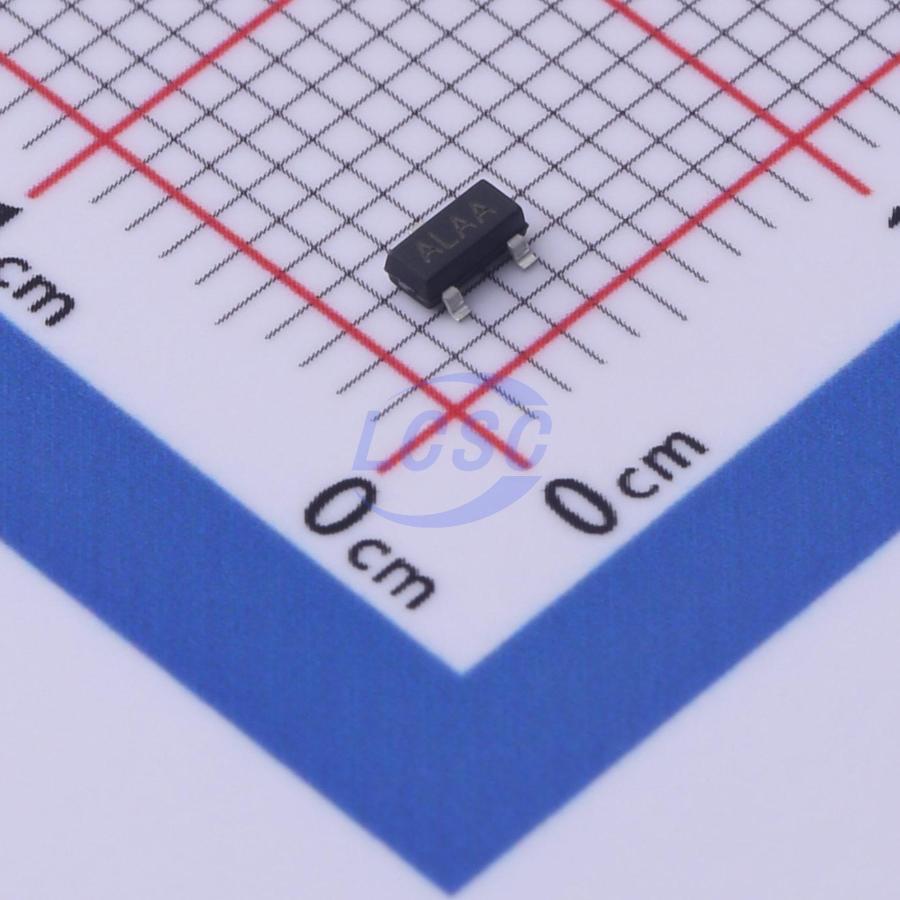

HG810RM3/TR
Supervisor Open Drain 1 Channel SOT-23-3
Low-Voltage Reset Detector HG810X Series: Microprocessor Reset Chip
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG810RM3/TR
- Store part #
- C2835189
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C2835189
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.39 | ₹83.90 |
| 100+ | ₹6.63 | ₹663.00 |
| 300+ | ₹5.76 | ₹1,728.00 |
| 3,000+ | ₹5.09 | ₹15,270.00 |
| 6,000+ | ₹4.56 | ₹27,360.00 |
| 9,000+ | ₹4.30 | ₹38,700.00 |
10 × ₹8.39
₹83.90
excl. GST
₹99.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HG810RM3/TR
₹83.90 for 10 + GST
Specifications
- output type
- Open-drain
- Reset Timeout
- 500ms
- Operating Temperature
- -20℃~+60℃@(TA)
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The HG810X series is a microprocessor reset IC with voltage detection capability, designed to monitor the supply voltage of microcontrollers or other logic systems. It provides reset signals to the microcontroller during power-up, power-down, and power-saving conditions. When the supply voltage drops below the preset detection threshold, the device asserts a reset signal until the supply voltage recovers above the detection threshold. In the HG810X series, when the input voltage falls below the detection threshold, the VRESET output goes high. The device requires no external components, making it simple to use.
Applications
- Battery-powered devices
- Wireless communication systems
- Computers and microprocessors
- PADs and handheld devices
- Embedded systems
Key features
- Low power consumption: 2μA (typical)
- Wide operating voltage range: 1V ~ 6.0V
- VCC transient noise immunity
- No external components required
- Built-in reset delay time: 500ms (typical)
- High-accuracy reset voltage: ±2.5%
- VRESET output low when input voltage exceeds detection voltage
- Compact package: SOT-23
