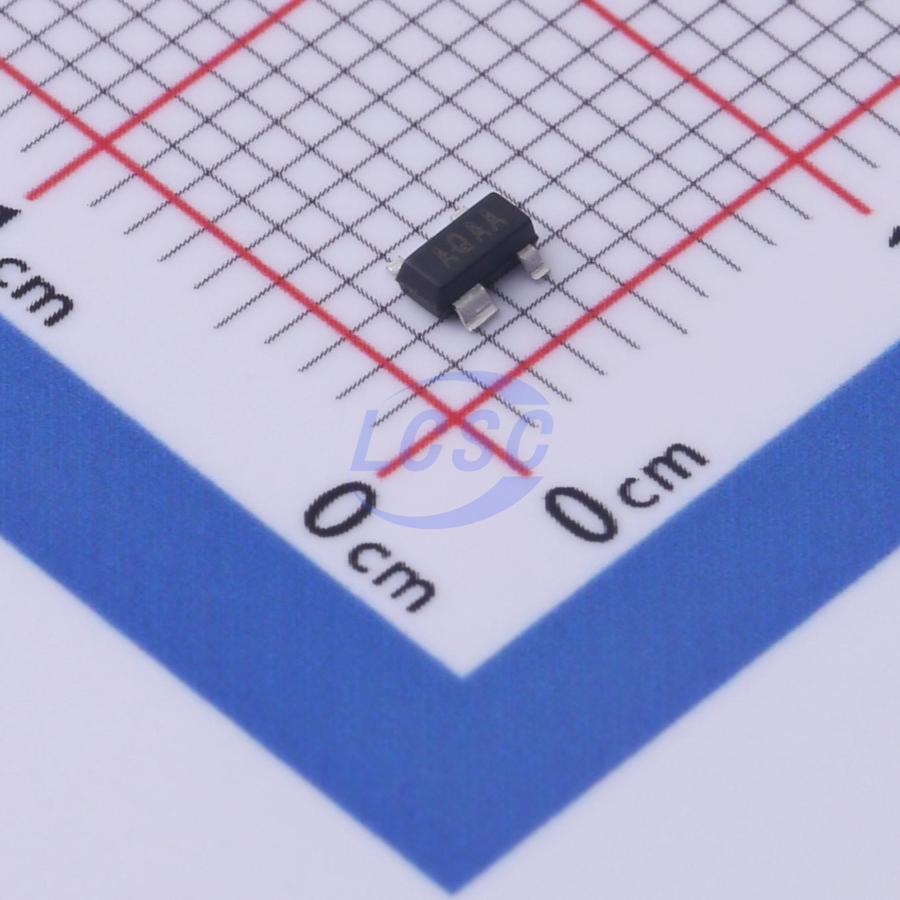

HG811SM4/TR
Supervisor 1 Channel SOT-143-4
Low-Voltage Reset Detector
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG811SM4/TR
- Store part #
- C2835194
- Package / case
- SOT-143-4
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,340 in stock
#C2835194
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.35 | ₹76.75 |
| 50+ | ₹12.24 | ₹612.00 |
| 150+ | ₹10.69 | ₹1,603.50 |
| 500+ | ₹9.53 | ₹4,765.00 |
| 3,000+ | ₹8.08 | ₹24,240.00 |
| 6,000+ | ₹7.62 | ₹45,720.00 |
5 × ₹15.35
₹76.75
excl. GST
₹90.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HG811SM4/TR
₹76.75 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Reset Timeout
- 500ms
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 1uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The HG811x series is a microprocessor reset IC with voltage detection functionality and an enable control pin, designed to monitor the supply voltage of microcontrollers or other logic systems. It provides a reset signal to the system during power-up, power-down, and power-saving conditions, or when the supply voltage falls below the preset detection voltage Vth. When the supply voltage rises above Vth during power-up or recovery, or when the enable pin transitions from low to high, the output will go high after a delay of Trp. When the input voltage falls below Vth, the output of the HG811x series goes low; the output also goes low when the enable control pin voltage is low. Simple to use with no external components required.
Applications
- Battery-powered equipment
- Power failure detectors
- Computers and microprocessors
- Non-volatile RAM signal storage protectors
- Critical MP power supply monitoring
- Embedded systems
Key features
- Low power consumption: 2uA (typ.) @VMR = VCC
- Wide operating voltage range: 1V~6.0V
- VCC transient noise immunity
- Simple application, no external components required
- Built-in reset delay time 500ms (typ.)
- High-accuracy reset voltage: ±2.5%
- Enable control pin, active low
- Compact package: SOT-143
