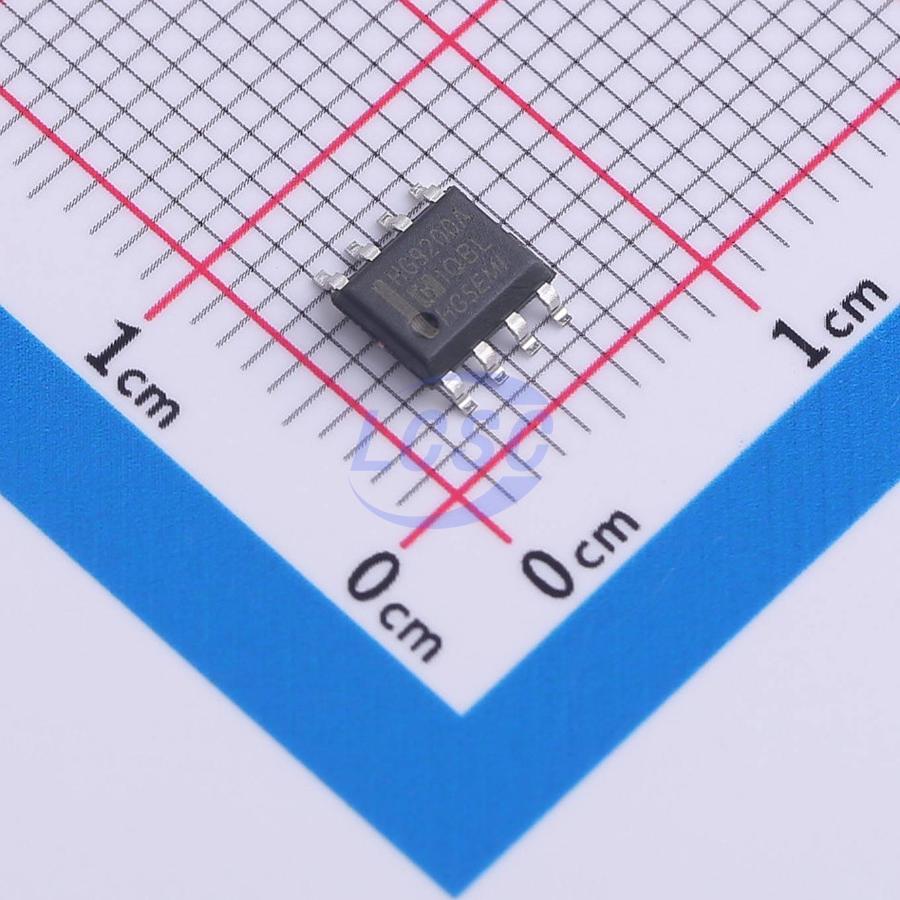

HGSEMI

HG9200AM/TR

Serial SOP-8 Audio Special Purpose

SOP-8RoHSActive

DTMF Generators HG9200A/HG9200B

Manufacturer: HGSEMI
Manufacturer part #: HG9200AM/TR
Store part #: C30170087
Package / case: SOP-8
Category: Audio Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,460 in stock

#C30170087

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹35.14	₹175.70
50+	₹27.58	₹1,379.00
150+	₹24.36	₹3,654.00
500+	₹20.32	₹10,160.00
2,500+	₹18.52	₹46,300.00
5,000+	₹17.45	₹87,250.00

Quantity (min 5, multiples of 5)

5 × ₹35.14

₹175.70

excl. GST

₹207.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HG9200AM/TR

₹175.70 for 5 + GST

Specifications

Operating Temperature: -20℃~+75℃
Interface: Serial
Voltage - Supply: 2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.077 g

Overview

The HG9200A/B tone generators are designed for MCU interfaces. They can be instructed by a MCU to generate 16 dual tones and 8 single tones from the DTMF pin. The HG9200A provides a serial mode whereas the HG9200B contains a selectable serial/parallel mode interface for various applications such as security systems, home automation, remote control through telephone lines, communication systems, etc.
