RENESAS

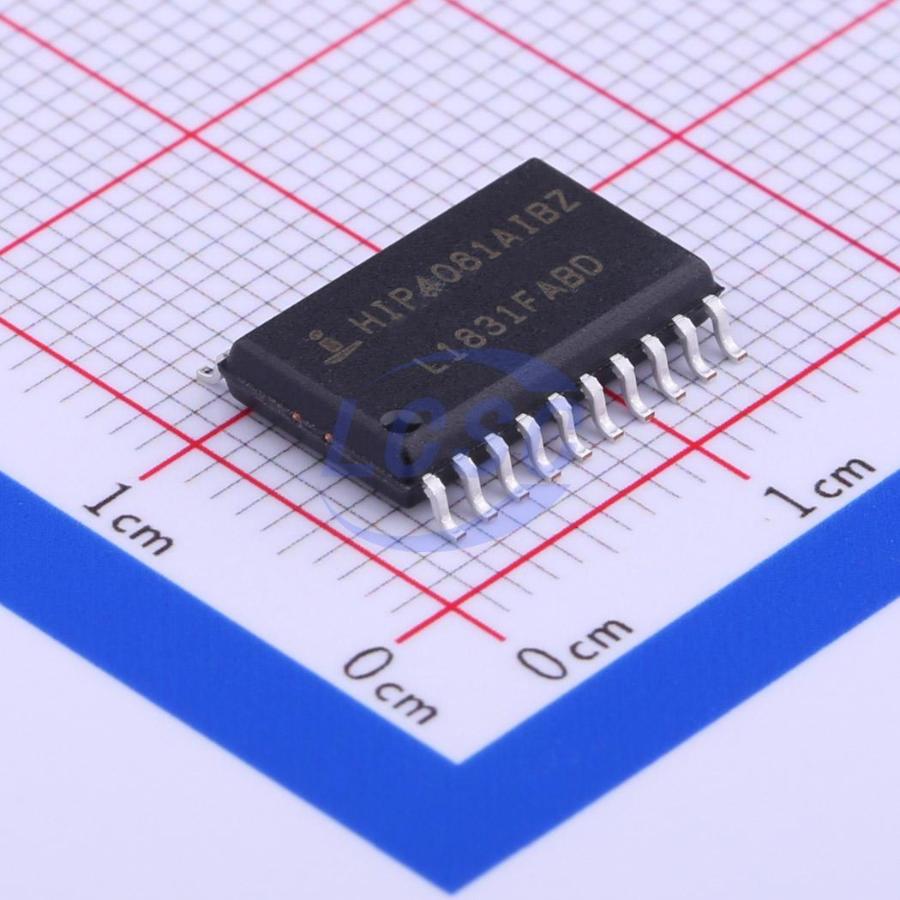

HIP4081AIBZT

4 MOSFET 100mA 10ns 10ns 100mA SOIC-20-300mil Full, Half-Bridge (H Bridge) Drivers RoHS

SOIC-20-300milROHS3 CompliantActive

80V/2.5A Peak, High Frequency Full Bridge FET Driver

Manufacturer: RENESAS
Manufacturer part #: HIP4081AIBZT
Store part #: C309795
Package / case: SOIC-20-300mil
Category: Full, Half-Bridge (H Bridge) Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,695 in stock

#C309795

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,830.61	₹1,830.61
10+	₹1,593.39	₹15,933.90
30+	₹1,448.86	₹43,465.80
100+	₹1,240.74	₹1,24,074.00

Quantity (min 1)

1 × ₹1,830.61

₹1,830.61

excl. GST

₹2,160.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

HIP4081AIBZT

₹1,830.61 for 1 + GST

Specifications

Input Logic Level - High: 2.5V~2.7V
Input Logic Level - Low: 800mV~1V
Number of Drivers: 4
Quiescent Current(Iq): 100nA
Load Type: MOSFET
Current - Output High(IOH): 100mA
Rise Time: 10ns
Fall Time: 10ns
Driven Configuration: Full bridge
Current - Output Low(IOL): 100mA
Operating Temperature: -40℃~+85℃
Features: Enable shutdown;Dead-time control;Interleaved conduction protection;Charge pump boost
Voltage - Supply: 9.5V~15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.5 g

Overview

The HIP4081A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. The HIP4081A can drive every possible switch combination except those which would cause a shoot-through condition. The HIP4081A can switch at frequencies up to 1MHz and is well suited to driving Voice Coil Motors, high-frequency switching power amplifiers, and power supplies. For example, the HIP4081A can drive medium voltage brush motors, and two HIP4081As can be used to drive high performance stepper motors, since the short minimum “on-time” can provide fine micro-stepping capability. Short propagation delays of approximately 55ns maximizes control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in rapid, precise control of the driven load.

Applications

Medium/Large Voice Coil Motors
Full Bridge Power Supplies
Switching Power Amplifiers
High Performance Motor Controls
Noise Cancellation Systems
Battery Powered Vehicles
Peripherals
U.P.S.

Key features

Independently Drives 4 N-Channel FET in Half Bridge or Full Bridge Configurations
Bootstrap Supply Max Voltage to 95VDC
Drives 1000pF Load at 1MHz in Free Air at 50°C with Rise and Fall Times of Typically 10ns
User-Programmable Dead Time
On-Chip Charge-Pump and Bootstrap Upper Bias Supplies
DIS (Disable) Overrides Input Control
Input Logic Thresholds Compatible with 5V to 15V Logic Levels
Very Low Power Consumption
Undervoltage Protection
Pb-free Available
